Outdoor P10 LED BILLBOARD DISPLAY 500*1000MM 1000*1000mm LED Cabinets
  • ONLYLED-XT-ELITE
  • CHINA
  • 1000pcs /month
  • 1000pcs

Our P10.4 LED cabinet delivers 8,500 nits of ultra-high brightness using premium SMD 3-in-1 LED lamps, providing exceptional visibility—even under direct sunlight. Available in both 5001000mm and 1000

Product details

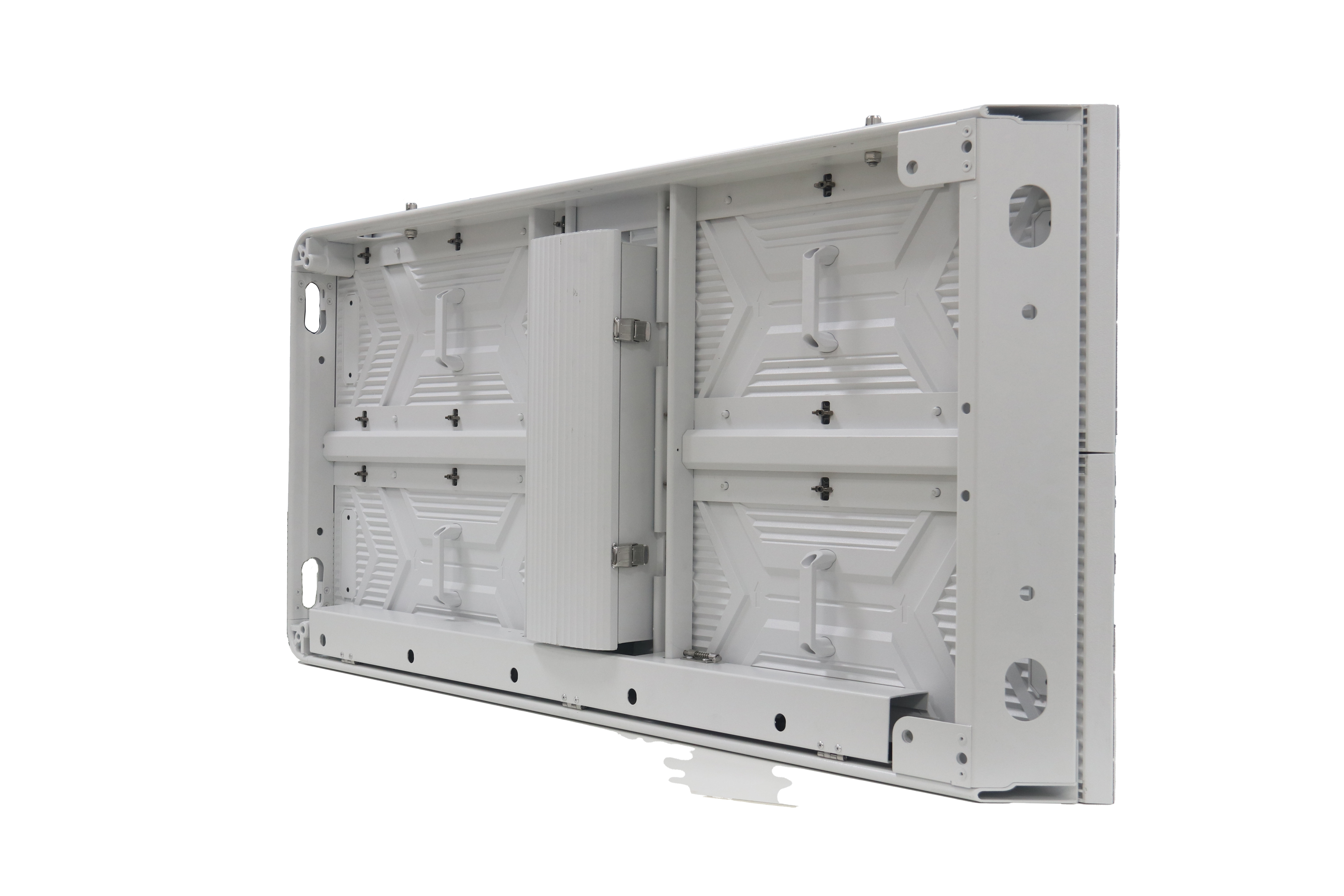

Our P10.4 LED cabinet delivers 8,500 nits of ultra-high brightness using premium SMD 3-in-1 LED lamps, providing exceptional visibility—even under direct sunlight. Available in both 500×1000mm and 1000×1000mm aluminum cabinets, it features IP66-rated waterproof LED modules (250×500mm), fully serviceable from the front or back. This makes it a reliable, durable, and cost-effective solution for large-format outdoor LED billboards and heavy-duty digital signage.


1. Key Features – P10.4 Outdoor LED Display Cabinet

  • Ultra-High Brightness: Delivers up to 8,500 nits with high-luminance SMD 3-in-1 LED lamps for superb visibility in outdoor environments.

  • Wide Viewing Angle: Offers a 110° horizontal viewing angle, maintaining sharp image quality from various perspectives.

  • Rugged & Weatherproof: Constructed with a rust-resistant aluminum cabinet and IP66 waterproof LED modules (250×500mm) for maximum durability in all weather conditions.

  • Flexible Cabinet Sizes: Available in 500×1000mm and 1000×1000mm formats to suit a wide range of billboard dimensions and layout needs.

  • Supports 90° Corner Installation: Ideal for 3D naked-eye LED displays, corner-wrapped billboards, and seamless edge-to-edge installations.

  • Versatile Mounting Options: Supports wall, roof, pole, trailer, and double-sided outdoor billboard configurations.

  • Energy Efficient: Equipped with common cathode LED technology, significantly reducing power consumption and heat output.

  • Quick Maintenance: Modular design enables both front and rear access, simplifying service and minimizing downtime.

  • Smart Control System: Features an integrated receiving card, automatic color and brightness calibration, and remote control via Wi-Fi or 4G connectivity.


2. Recommended Applications

ONLY LED’s P10.4 outdoor LED cabinet is purpose-built for large-scale outdoor digital billboards. Its high brightness, robust construction, and flexible installation capabilities make it the ideal choice for:

  • Large-format LED advertising billboards in highways, city centers, and commercial zones

  • 3D corner LED displays with naked-eye visual effects

  • Out-of-home (OOH) advertising networks and media screens

  • Building facades for retail centers, shopping malls, and business complexes

  • Low-maintenance LED signage for transportation terminals, stadiums, and public venues

This cabinet offers unmatched value in high-visibility, large-format outdoor LED display projects, backed by strong durability, smart functionality, and long-term performance.



3. Product parameters


MODEL NUMBERXTE-PH10.4-OC
LED cabinet Size1000*1000 mm / 1000*500mm
Pixel  Pitch 10.4mm
LEDsSMD2727 / super-brigthness and golden wire LEDs
Weight  /㎡32KGS /㎡
Density of pixel 9,216 Pixel/㎡
Resolution/Cabinet96pixel*96pixel  / 96 pixel*48pixel
viewing angle/horizontal 110°
Viewing angle/Vertical 90°
Average power/Cabinet (W)153
Max power/Panel (W)512
Driving Method 1/4 Scan
Refresh rate ≥3840HZ
Brightness≥9,000 cds/㎡
Working environmentOutdoor
WaterproofIP66
Grey scale/display color 65536/display 16.7M
frame frequency ≥60HZ
Brightness adjustmentManual R.G.B each color 256,automatic 8 grades are adjustable
Control system Colorlight and Novastar
System Operation PlatformWindows
Average no Failure time ≥10000hrs
Lifetime of Led  ≥100000hrs
Malfunction do rate <0.0001
Working Voltage 120V to 240V AC
Earth leakage current <0.01mA
working / Storage temperature    working -30℃~60℃    storage -40℃~85℃
