Our P6.25 LED cabinet offers 9,000 nits brightness with ultra-high luminance SMD 3-in-1 LED lamps for exceptional visibility, even under sunlight. Its 500x1000mm AND 1000*1000mm aluminum cabinet featu
Product details
Our P6.25 LED cabinet offers 9,000 nits brightness with ultra-high luminance SMD 3-in-1 LED lamps for exceptional visibility, even under sunlight. Its 500x1000mm AND 1000*1000mm aluminum cabinet features IP66 waterproof modules (250x500mm) that can be serviced from the front or back, making it a reliable and cost-effective solution for outdoor digital billboards.
1. Key Features – P6.25 Outdoor LED Display Cabinet
Ultra-High Brightness: Delivers up to 9,000 nits using premium SMD 3-in-1 LED lamps, ensuring excellent visibility—even in direct sunlight.
Wide Viewing Angle: Provides a 110° horizontal viewing range, maintaining image clarity across large viewing areas.
Rugged & Weatherproof: Built with a rust-resistant aluminum cabinet and IP66-rated waterproof modules (250×500mm) for long-term outdoor durability.
Flexible Cabinet Sizes: Available in 500×1000mm and 1000×1000mm formats to suit diverse installation requirements.

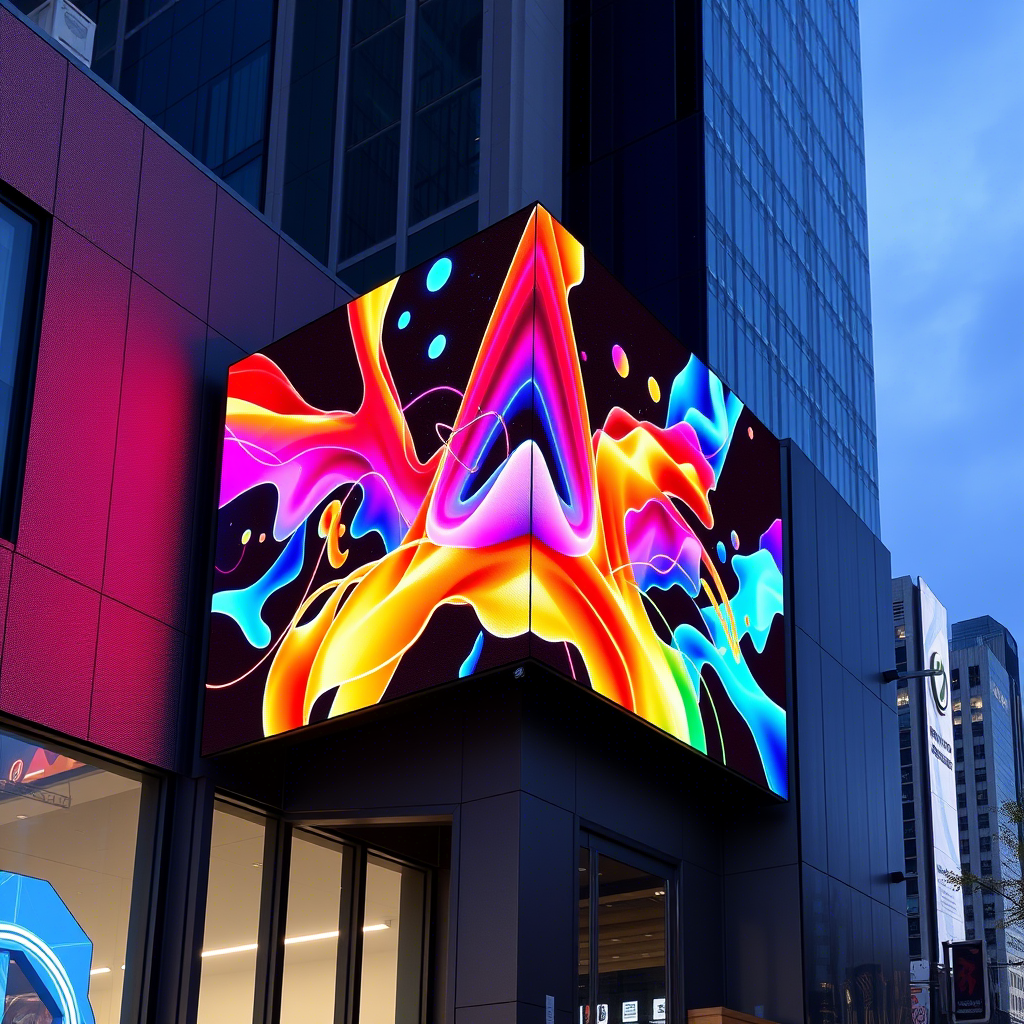

Supports 90° Corner Installation: Ideal for 3D naked-eye LED displays, building wraps, and seamless edge-to-edge corner signage.
Versatile Mounting Options: Easily adaptable for wall-mounted, roof-mounted, pole-mounted, trailer-based, or double-sided billboard setups.
Energy Efficient: Powered by common cathode LED technology, significantly reducing power consumption and heat.
Quick Maintenance: Modular design allows for both front and rear access, making servicing fast and convenient.
Smart Control System: Integrated receiving card with support for color and brightness calibration, plus remote control via Wi-Fi or 4G connectivity.
2. Recommended Applications
ONLY LED’s P6.25 outdoor LED cabinet is an ideal solution for a wide range of outdoor digital signage projects. Its high brightness, flexible installation options, and durable performance make it perfect for:
Large-format digital billboards
3D corner LED displays with naked-eye visual effects
Out-of-home (OOH) advertising displays
Retail and commercial building facades
Low-maintenance signage for transportation hubs and stadiums
3. Product parameters
MODEL NUMBER | XTE-PH6.25-OC | |||||||
LED cabinet Size | 1000*1000 mm / 1000*500mm | |||||||
Pixel Pitch | 6.25mm | |||||||
LEDs | SMD2727 / super-brigthness and golden wire LEDs | |||||||
Weight /㎡ | 32KGS /㎡ | |||||||
Density of pixel | 25,600 Pixel/㎡ | |||||||
Resolution/Cabinet | 160pixel*160pixel / 160 pixel*80pixel | |||||||
viewing angle/horizontal | 110° | |||||||
Viewing angle/Vertical | 90° | |||||||
Average power/Cabinet (W) | 153 | |||||||
Max power/Panel (W) | 512 | |||||||
Driving Method | 1/4 Scan | |||||||
Refresh rate | ≥3840HZ | |||||||
Brightness | ≥9,000 cds/㎡ | |||||||
Working environment | Outdoor | |||||||
Waterproof | IP66 | |||||||
Grey scale/display color | 65536/display 16.7M | |||||||
frame frequency | ≥60HZ | |||||||
Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable | |||||||
Control system | Colorlight and Novastar | |||||||
System Operation Platform | Windows | |||||||
Average no Failure time | ≥10000hrs | |||||||
Lifetime of Led | ≥100000hrs | |||||||
Malfunction do rate | <0.0001 | |||||||
Working Voltage | 120V to 240V AC | |||||||
Earth leakage current | <0.01mA | |||||||
working / Storage temperature | working -30℃~60℃ storage -40℃~85℃ |
