18' x 14' Outdoor LED Stadium Display

This is a 252-square-foot outdoor LED video board built around 3 x 4 ft die-cast aluminium cabinets in P9.52mm. It is the size most high school and small-college programs install for football, soccer and baseball fields — big enough to show live video and sponsor ads, compact enough to mount on a standard pole or structural frame.

Outdoor LED Video Board for Football, Soccer and Baseball

Outdoor LED scoreboard at a high school football field at dusk showing team scores and game clock — End-zone scoreboard at a high school football field — team scores, quarter and down information.

The P9.52mm pixel pitch is chosen because the closest spectator is typically 50 feet or farther from the board. At that distance, individual pixels blend naturally and the screen reads as a continuous image. Brightness is 10,500 nits with golden wire LEDs, which keeps the picture legible in afternoon sun without washing out. The refresh rate runs at 3,000 Hz, so phone recordings and broadcast cameras pick up a clean image without flicker.

What You Can Show on Game Day

During a game, the display runs live camera feed, instant replays, scores, quarter clock, downs and yardage, player stats and sponsor messages. Between games, it rotates advertising for local businesses, team announcements and venue information. The controller (Colorlight or Novastar) comes with an automatic light sensor that steps brightness down at night — reducing power draw and avoiding light-complaints from neighbours.

Outdoor LED video board at a baseball stadium showing player statistics and sponsor advertisement at sunset — Baseball outfield board — batting stats, score and sponsor banner in one display.

Cabinet and Build

Each 3 x 4 ft cabinet weighs 70 lbs. The frame is die-cast aluminium with a black anti-glare face. Modules come out from the front, so maintenance crews work from a lift or platform in front of the screen — no rear access walkway required. The common-cathode design lowers power draw by about 40% compared with conventional modules, and the aluminium housing acts as a heat sink, keeping junction temperatures down over years of outdoor use.

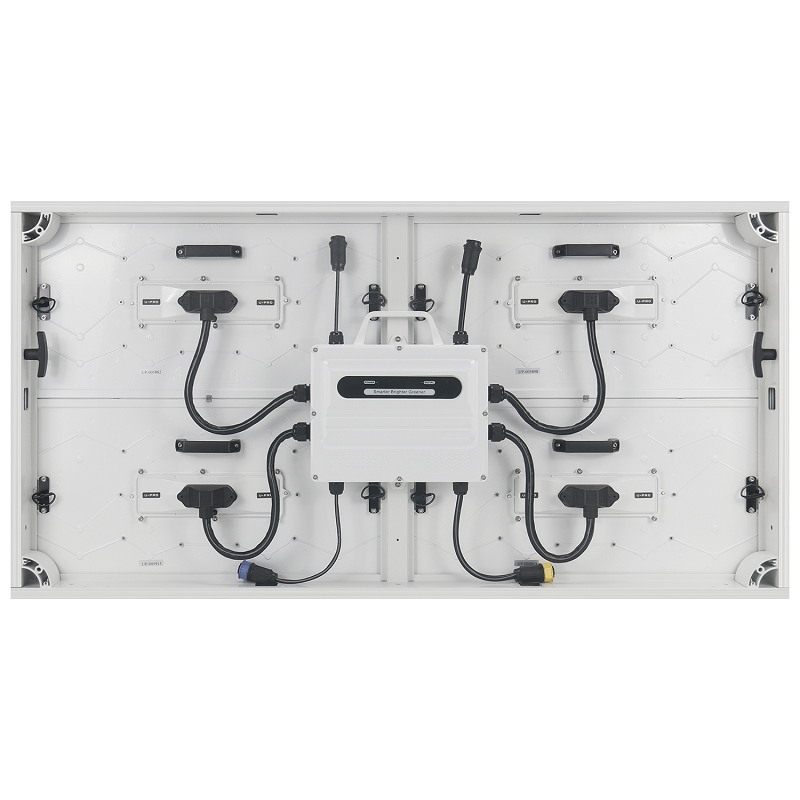

U-PRO-L4 outdoor LED display cabinet, rear side with protective cover — U-PRO-L4 cabinet — rear side with cover.

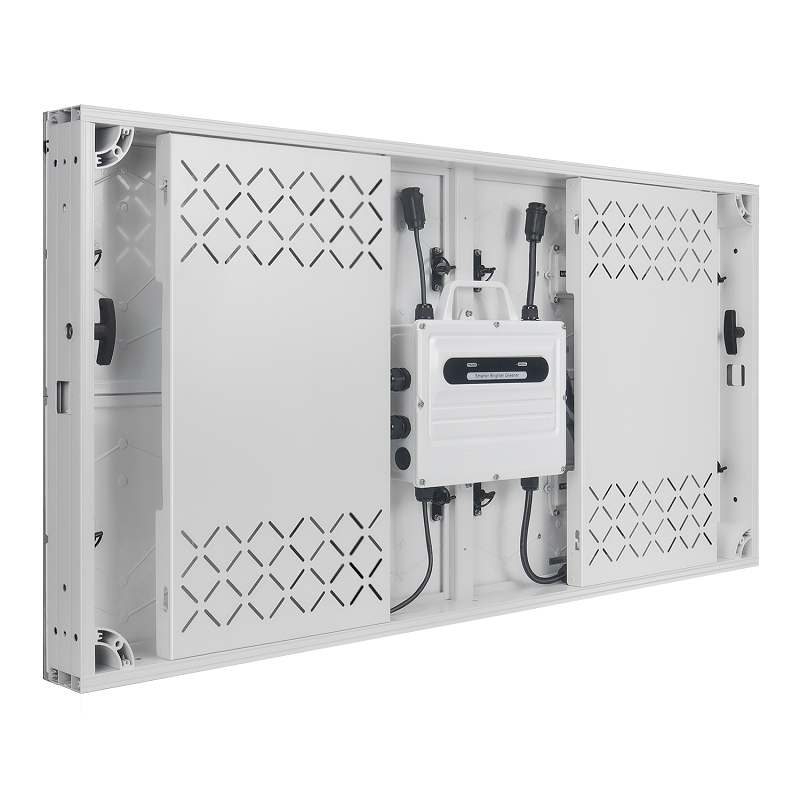

U-PRO-L4 outdoor LED display cabinet, side view — U-PRO-L4 cabinet — side view of the aluminium frame.

Technical Specifications

Parameter	Value
Display size per face	18 ft x 14 ft (5.5 m x 4.3 m)
Display area per face	252 sq ft (23.4 m²)
Faces	Single or double-sided
Pixel pitch	9.52 mm (P6.35 / P7.62 available)
LED type	SMD2727, golden wire
Resolution per face	576 x 448 pixels
Brightness	10,500 nits
Refresh rate	3,000 Hz minimum
Viewing distance	50 ft and up
Cabinet	3 x 4 ft / 3 x 2 ft, die-cast aluminium, 70 lbs
Protection	IP66 front and rear
Control	Colorlight / Novastar, Wi-Fi, LAN, USB, auto-brightness
Power input	120V-240V AC, 50/60 Hz
Max power draw	250 A @ 120 V
Avg power draw	87.5 A @ 120 V
Warranty	6 years — hardware, parts, pixels
Certifications	CE, EMC, LVD, FCC, ETL, RoHS

Who Installs It

We supply the panels, controller, power distribution boxes, spare receiving cards and 5% spare modules, shipped DDP to your site. Your local sign company, structural contractor or electrical crew handles the pole, footing and power connection. We provide dimension drawings, electrical requirements and technical support during install.

What Ships With the Order

LED cabinets, brain box controller with light sensor, outdoor power distribution boxes, spare power supplies and receiving cards, 5% spare LED modules, polywood packing crates, and DDP ocean freight door-to-door to your address in the USA. Customs, duties and last-mile trucking are included in the delivered price.
