92% transparent LED screen factory-direct. P3.91/P6.25 see-through LED panels for retail windows, shopping malls & corporate glass walls. 65mm thin, 3840Hz. Get a quote.`
Product details

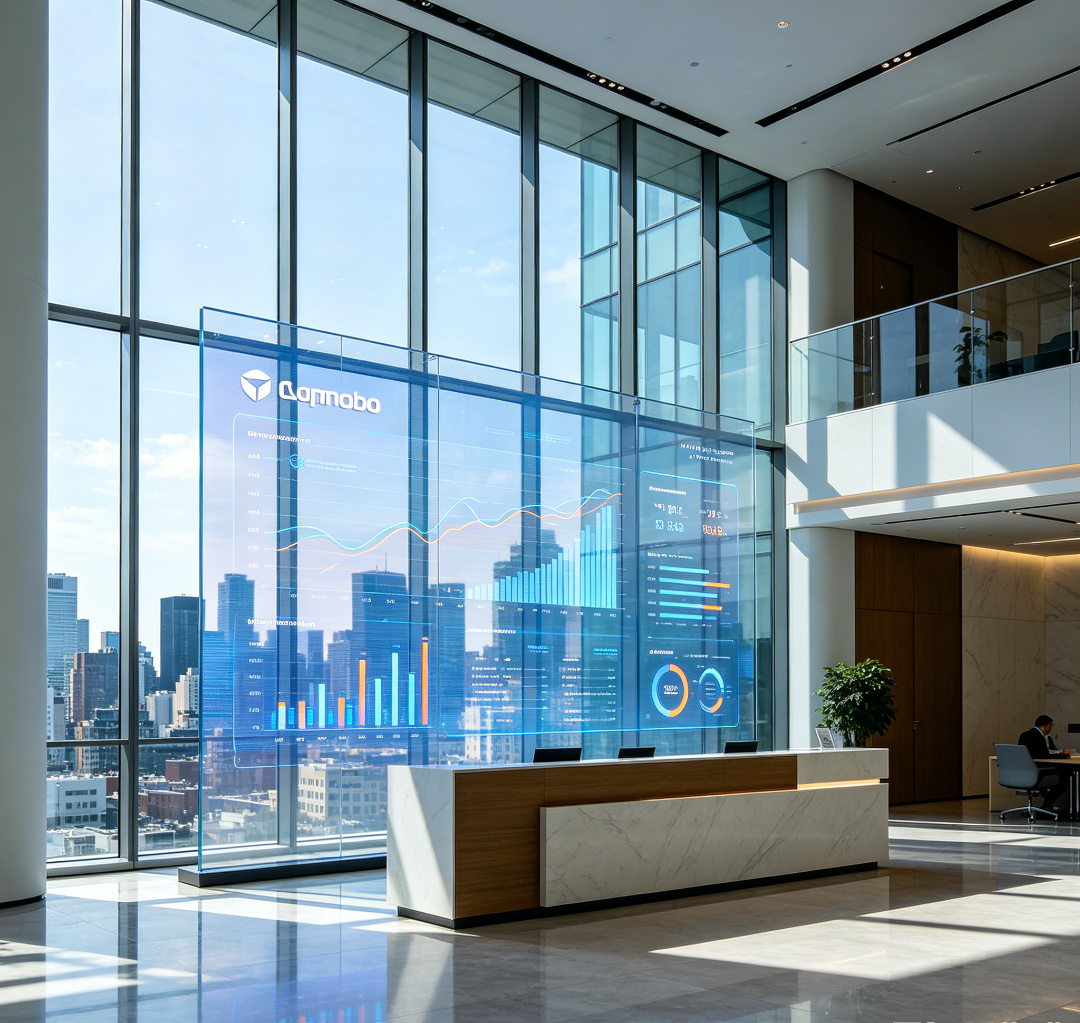

Transparent LED Screen for Retail Windows & Glass Walls
Our transparent LED display uses SMD1515 black LEDs mounted on a clear substrate, letting 92% of natural light pass through while displaying full-color video. Available in P3.91 and P6.25 pixel pitch modules — made for storefront windows, shopping mall atriums, and corporate glass facades.
What is a transparent LED screen?
A transparent LED screen (also called a see-through LED display, glass LED screen, or transparent LED panel) is built from thin LED strips mounted on a clear acrylic or glass substrate. Unlike a conventional LED video wall, you can see through it — natural light passes, the space behind remains visible, and the screen looks like glass when powered off.
92% Light Transmission
LED strips occupy only 8% of the surface. Natural daylight flows through — no dark box, no blocked view, no loss of window light.
P3.91 High Resolution
65,536 pixels per square meter at 3.91mm pitch. Read text and logos clearly from 3 meters away. Also available in P6.25 for longer viewing distances.
6 kg/m², 65mm Thick
Ultra-lightweight panel weighs only 6 kilograms per square meter. Mounts on existing glass curtain walls without structural reinforcement.
Front & Rear Service
Modules slide out from the front or back. Quick-lock frame means one person can replace a faulty strip in minutes.
Fanless Cooling
Structure-reinforced natural convection. No fans, no air conditioning, no noise — suitable for offices, galleries, and quiet retail spaces.
Module Sizes

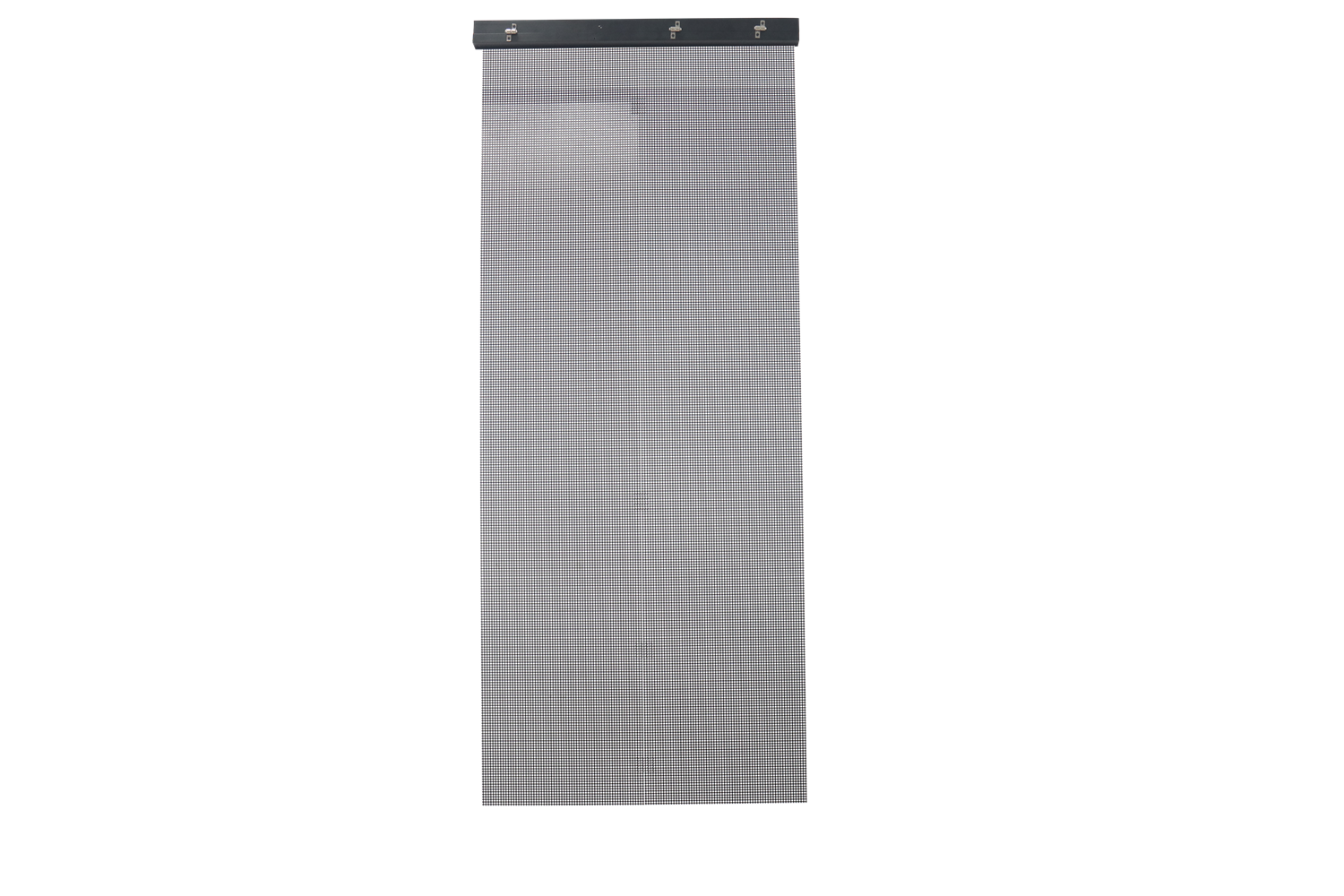

Standard modules: 1000×250mm and 1500×250mm. Build any width or height by tiling modules horizontally.
Real product, factory photos
Where transparent LED displays are used

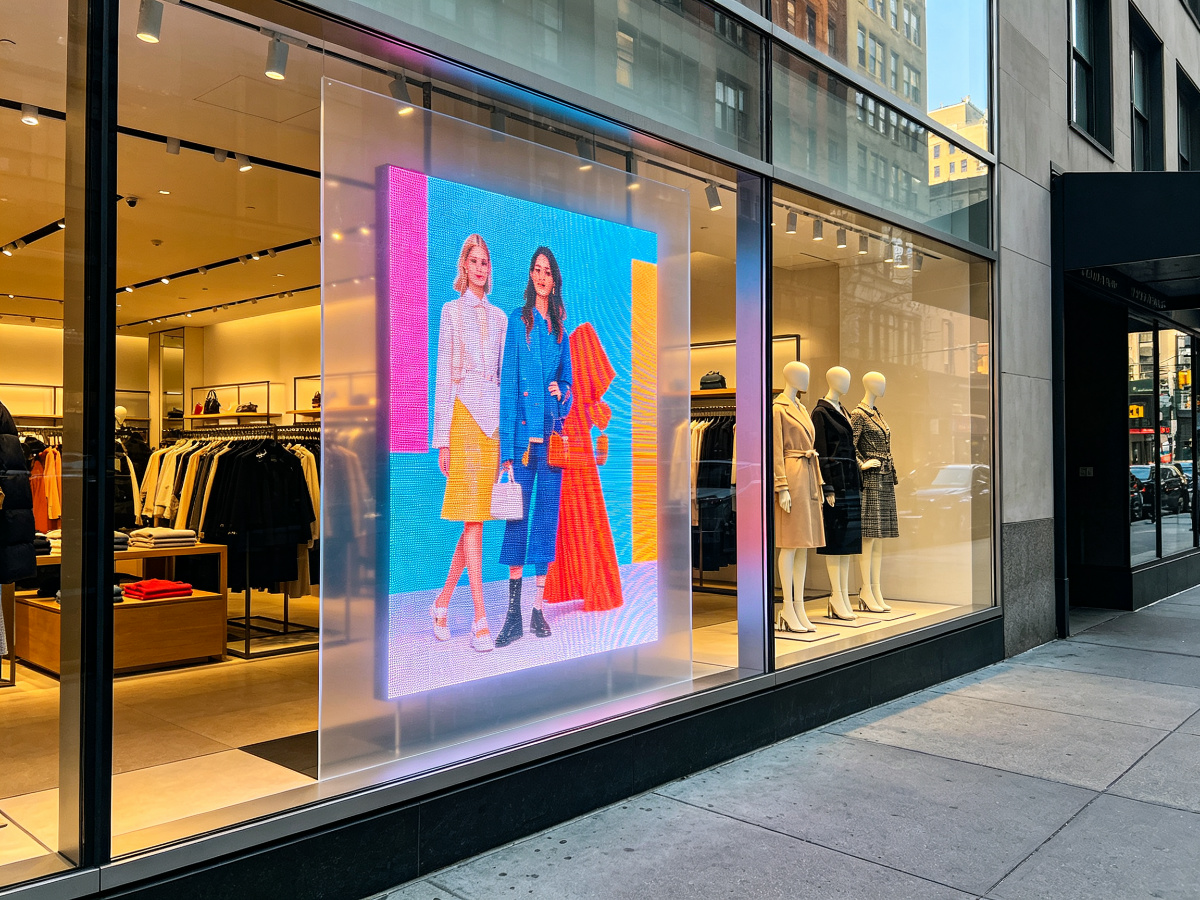

Retail Window Displays
Mount a transparent LED panel directly on a storefront window. Pedestrians see your advertising in vivid color, while daylight still enters the store and products behind the glass remain visible.

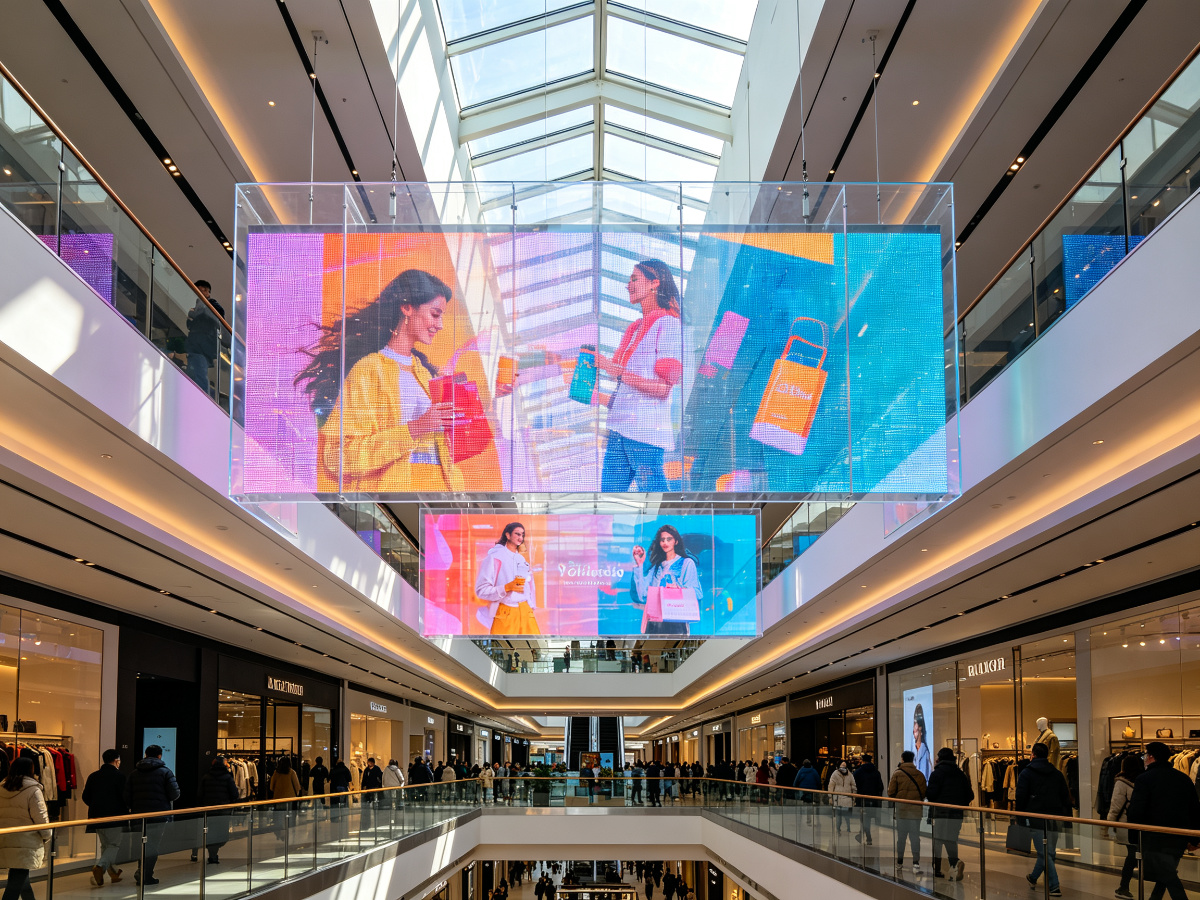

Shopping Mall Atriums
Hanging transparent LED screens across mall walkways create advertising surfaces without blocking sightlines or natural light from skylights.

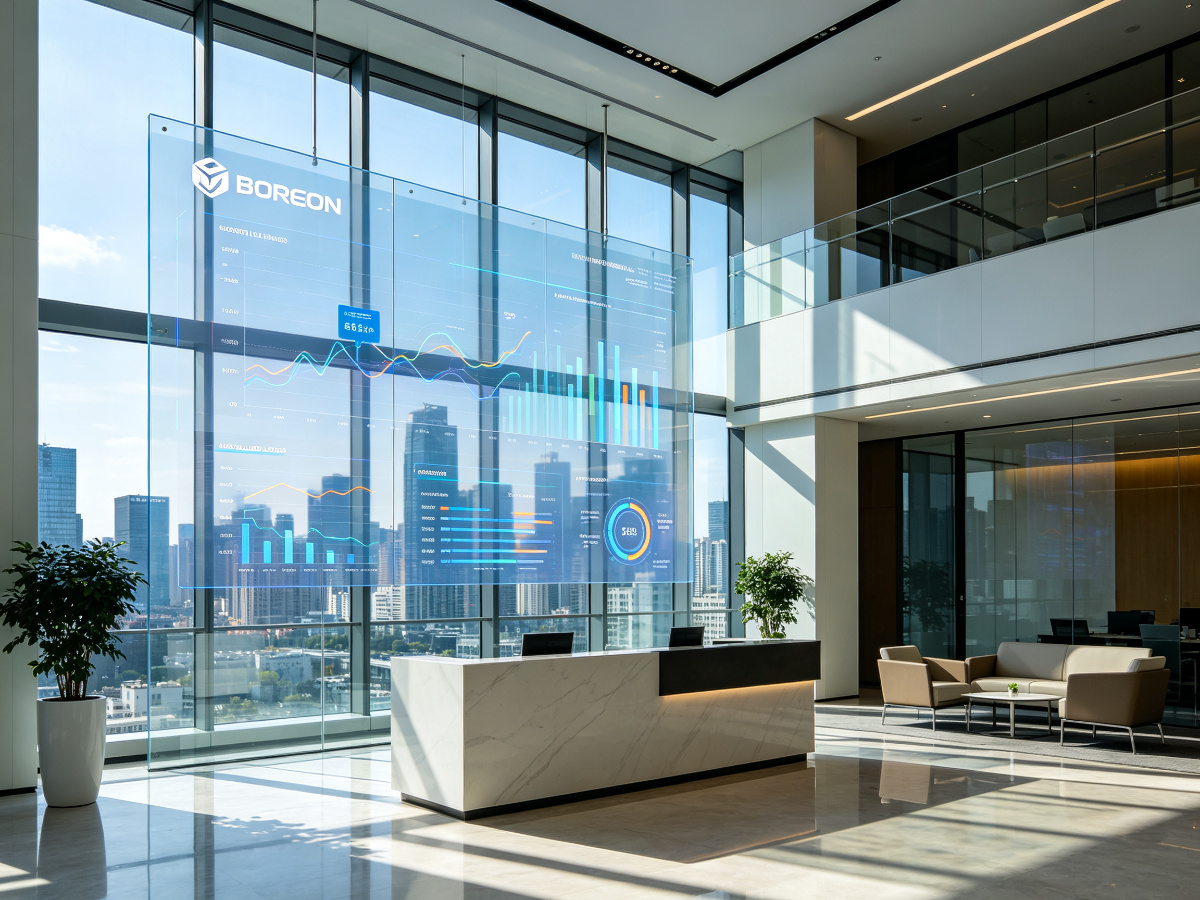

Corporate Glass Walls
Reception lobbies, boardrooms, and product showrooms use transparent LED panels on glass walls to show branding, data, or video — without sacrificing the open-office feel.

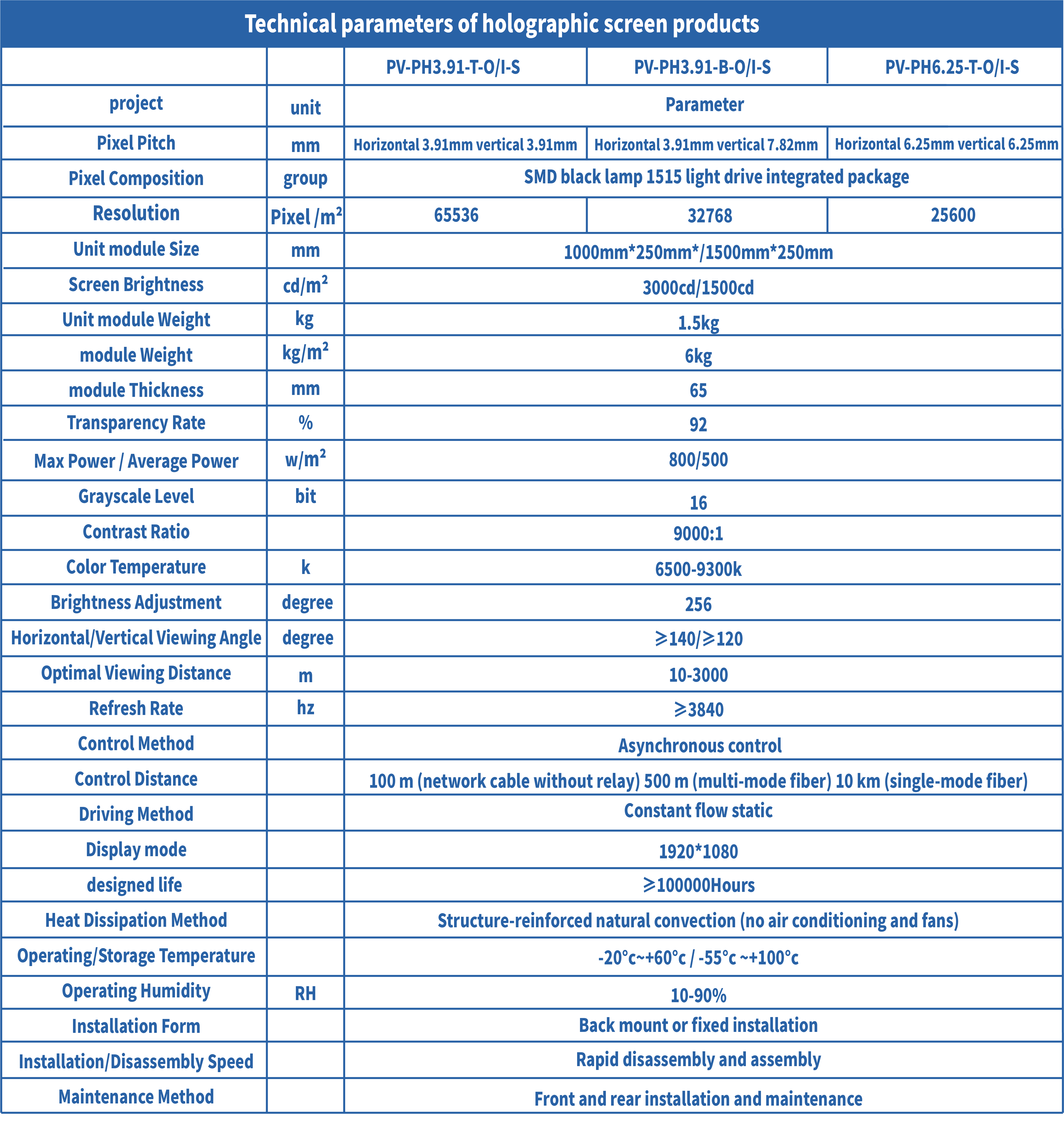

PV Series transparent LED screen — specs
Three models available: PV-PH3.91-T (square pixel), PV-PH3.91-B (belt pixel), and PV-PH6.25-T.
| Model | PV-PH3.91-T / PV-PH3.91-B / PV-PH6.25-T |
|---|---|
| Pixel Pitch | 3.91×3.91mm / 3.91×7.82mm / 6.25×6.25mm |
| LED Type | SMD1515 black lamp, light-drive integrated package |
| Resolution | 65,536 / 32,768 / 25,600 pixels/m² |
| Module Size | 1000×250mm or 1500×250mm |
| Brightness | 3,000 cd/m² (T) / 1,500 cd/m² (B) |
| Module Weight | 1.5 kg per module / 6 kg/m² |
| Thickness | 65 mm |
| Transparency | 92% |
| Power Consumption | Max 800 W/m² / Average 500 W/m² |
| Grayscale | 16-bit |
| Contrast Ratio | 9,000:1 |
| Color Temperature | 6,500K – 9,300K |
| Viewing Angle | 140° horizontal / 120° vertical |
| Optimal Viewing Distance | 1 – 30 meters |
| Refresh Rate | 3,840 Hz |
| Control | Asynchronous; 100m network / 500m multi-mode fiber / 10km single-mode fiber |
| Driving Method | Constant flow static |
| Lifespan | 100,000 hours |
| Cooling | Natural convection (no fans) |
| Operating Temp | -20°C to +60°C |
| Installation | Back-mount or fixed; front and rear maintenance |
Frequently asked questions
Get a transparent LED screen quote
Send us your dimensions, pixel pitch preference, and installation location. We'll send a configuration and pricing within 24 hours.
