High resolution LED video wall P3.91 500x1000mm cabinet
  • ONLYLED
  • CHINA
  • 1000pcs /month
  • 1000pcs

Outdoor Pixel pitch 3.91mm LED Cabinets for outdoor digital displays.Extruded aluminium LED cabinet 500x1000mm. High contrast 4000:1 ,large viewing angle 110 degree, good visual effect, suitable for

Product details

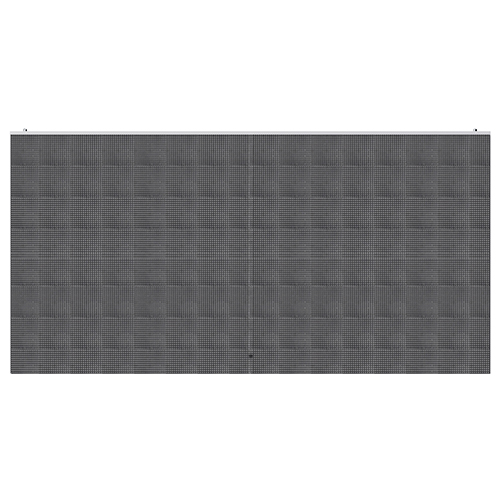

Outdoor Pixel pitch 3.91mm LED Cabinets for outdoor digital displays.Extruded aluminium LED cabinet 500x1000mm. High contrast 4000:1 ,large viewing angle 110 degree, good visual effect, suitable for videoscreens, sports broadcast, outdoor advertising LED screens,(DOOH) digital signages. Modular design, fast installation,easy maintenance,support front and rear access installation. ONLY LED privide 5 years warranty on this product.


1.Product introduction


. High resolution pixel pitch 3.91mm,wide viewing angle 110 degree.

. metric size 500*1000mm,ideal size for most display applications, Suitable for building big size led board.

. Good brightness 6500nits, high contrast, vivid display effect.

. Excellent heat dissipation effect can protect the LED components, ensure high stability and prolong lifespan.

. 1x1 meter cabinet structure available,too.

. Support front access(wall mount and double faced LED signs) and back access(pole signs) installation

. common cathode LEDs and truly engery saving design, saving 30% electricity than a conventinal LED screen.

. OEM and ODM service provided.

. Factory warranty period 60 months.


2.Product feature and application


. Metric size led cabinet 0.5meter high by 1meter wide, suitable for any size LED displays.

. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED module and power supply box,without fans, Ingress protection 66.

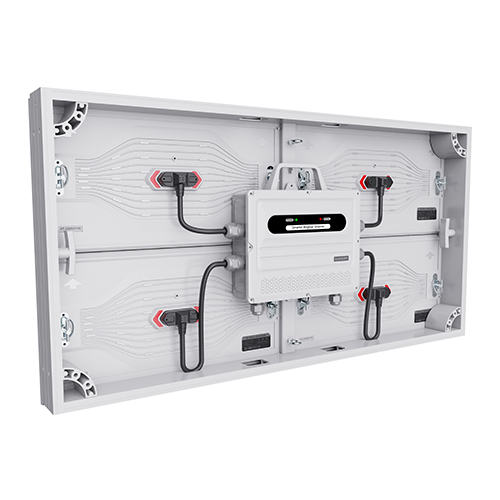

 Power and data integrated into one cable and one connector increases functional stability.

. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

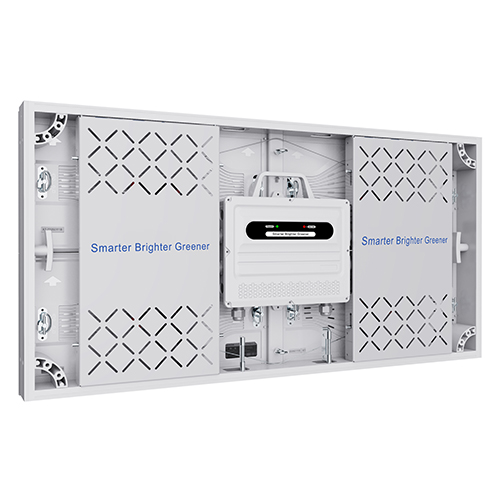

. Support front and back maintenance

. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.

. Suitable for putting up giant LED billboard,low service costs.

. Common cathode LEDs, the truly energy saving solution.


3.Product parameters


MODEL NUMBERXTP-PH3.91-SBD-L4 (Common   cathode LEDs)
Working   EnvironmentOutdoor Installation
LED   Cabinet size500 X 1000MM
Ingress   protection ratingIP66
Cabinet   installation typePermanent install
Pixel   pitch3.91mm
Cabinet   materialExtruded Aluminum
LED lampSMD1921 3in1 Common cathode LEDs
Density   of pixel65536   pixels/
Resolution/cabinet128pixel*256 pixels
Average power/cabinet99W
Max power/cabinet298w
Driving Method1/8 Scan
Brightness≥6,500cds/
Cabinet   weight (kgs)16kgs
Installation   AccessFront Access /Back access
Refresh rate≥3000HZ
viewing angle/horizontal110°
Viewing angle/Vertical110°
Grey scale/display color65536/display 16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Input signalRFS-VideoRGBRGBHVYUVYCCOMPOSITONS
Control systemColorlight and Novastar
System   Operation PlatformWindows
Malfunction do rate0.0001
AC Input VoltageV   FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
working   / Storage temperatureworking -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
WarrantyFIVE years
