Outdoor P2 Fine Pitch LED Display

Brand: ONLY LED DISPLAY
Product origin: CHINA
Availability: 2000
SKU: 2000

Upgrade your outdoor visual with our P2.38 fine pitch LED display. 1‘x2‘ (300x600mm) high-resolution panels, 5000nits brightness, IP65 waterproof. Perfect for close-viewing outdoor billboards & rental. Get a quote!

download attachment

Product details

Skyline Series · Finest Outdoor Pixel Pitch

PH2.38 Outdoor
Fine Pitch LED Display

The smallest pixel pitch in our premium Skyline series. Engineered for close-viewing environments, delivering stunning ultra-HD visuals that captivate audiences just meters away.

2.38mm

Pixel Pitch

≥5,000

Nits Brightness

IP66

Fanless Design

6.5kg

Cabinet Weight

Request a QuoteView Specifications

176,356

Pixels / m²

Zero Screen Door

Product Overview

Redefining Outdoor Close-Viewing

Step into the future of outdoor advertising with the ONLY LED 2.38mm Outdoor Fine Pitch LED Display. This cutting-edge screen breaks the boundaries of traditional outdoor displays.

Built for Premium Digital Signage

Whether you are upgrading retail storefronts, launching a transit advertising campaign, or building a next-generation Digital Out-of-Home (DOOH) network, the ONLY LED 2.38mm panel combines crisp 2.38mm pixel pitch technology with rugged outdoor durability.

Its sleek, lightweight die-casting aluminum design ensures seamless installation and maximum visual impact, making it the ultimate solution for premium outdoor digital signage where high resolution and weather resistance intersect.

Explore Key Features

e-Casting

Di Aluminum Cabinet · Front & Rear Maintenance · 1'×2' (12"×24")

Why Choose ONLY LED

Five Reasons Integrators Choose Us

We do not just build screens; we build reliable, high-impact visual solutions engineered for real-world outdoor environments.

Unmatched Close-Viewing Clarity

With a 2.38mm pixel pitch and 176,356 pixels per square meter, this screen eliminates the "screen door effect." Crisp text and vibrant video even when viewers are just 2 to 3 meters away.

Rugged IP66 Fanless Design

Advanced IP66-rated, fanless design ensures complete sealing against dust, heavy rain, and humidity. Without moving parts, the failure rate drops significantly, with silent operation from -30°C to 60°C.

Ultra-Lightweight & Versatile

Weighing only 6.5 kg (14.3 lbs), the 1'×2' die-casting aluminum cabinet is incredibly easy to handle. Supports front and rear maintenance, and can be mounted horizontally or vertically for complex structures.

Energy-Efficient High Brightness

Boasts ≥5,000 nits of brightness to combat direct sunlight, yet maintains an ultra-low average power consumption of just 39W per panel. Drastically reduces electricity bills and heat dissipation requirements.

Smart Remote Management

Compatible with industry-leading Novastar and Colorlight control systems. Update content, adjust brightness, and monitor screen status remotely via WiFi or 4G from your Windows platform, anywhere in the world.

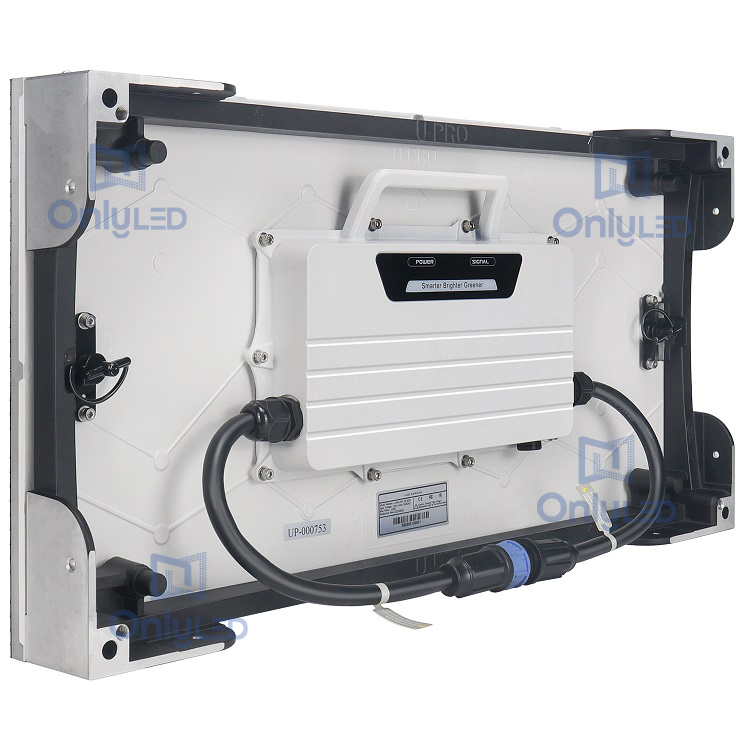

Front & Rear Maintenance

Designed for both front and rear access. Easily replace individual modules or power supplies from the front without dismantling the entire structure, minimizing downtime and maintenance costs for any installation.

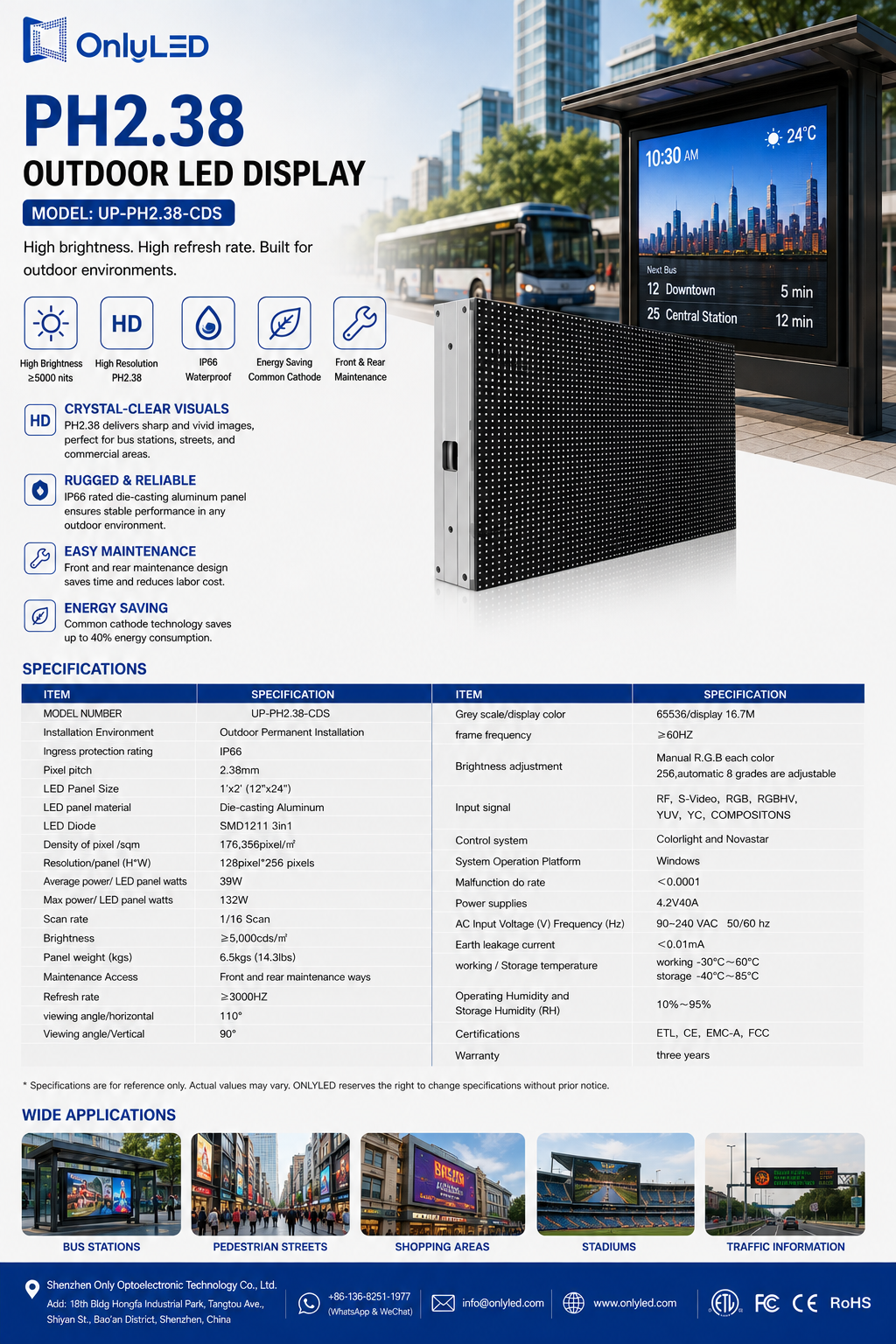

Technical Specifications

Full Technical Specifications

Model: UP-PH2.38-CDS — Every parameter engineered for outdoor durability and visual excellence.

Item	Specification	Item	Specification
Model Number	UP-PH2.38-CDS	Grey Scale / Display Color	65536 / display 16.7M
Installation Environment	Outdoor Permanent Installation	Frame Frequency	≥60Hz
Ingress Protection Rating	IP66	Brightness Adjustment	Manual R.G.B each color, 256 automatic 8 grades
Pixel Pitch	2.38mm	Input Signal	RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITIONS
LED Panel Size	1'×2' (12"×24")	Control System	Colorlight and Novastar
LED Panel Material	Die-casting Aluminum	System Operation Platform	Windows
LED Diode	SMD1211 3-in-1	Malfunction Dot Rate	<0.0001
Density of Pixel /sqm	176,356 pixel/m²	Power Supplies	4.2V40A
Resolution / Panel (H×W)	128 pixel × 256 pixels	AC Input Voltage / Frequency	90–240 VAC, 50/60 Hz
Average Power / LED Panel Watts	39W	Earth Leakage Current	<0.01mA
Max Power / LED Panel Watts	132W	Working / Storage Temperature	working -30°C~60°C / storage -40°C~85°C
Scan Rate	1/16 Scan	Operating / Storage Humidity (RH)	10%~95%
Brightness	≥5,000 nits	Certifications	ETL, CE, EMC-A, FCC
Panel Weight	6.5 kgs (14.3 lbs)	Warranty	Three years
Maintenance Access	Front and rear maintenance ways	Refresh Rate	≥3000Hz
Viewing Angle (H/V)	110° / 90°	Contrast Ratio	High contrast

* Specifications are for reference only. Actual values may vary. ONLYLED reserves the right to change specifications without prior notice.

Ideal Applications

Where This Display Shines

Engineered for versatility. It excels in applications where high resolution and outdoor durability intersect.

Premium Retail

Eye-catching HD window displays that attract foot traffic

Transit Advertising

Perfectly sized for bus sides, tram exteriors, and taxi roofs

DOOH Networks

High-impact street furniture, bus shelters, pedestrian billboards

Sports & Entertainment

Close-range stadium perimeter boards and outdoor broadcasting screens

Corporate Signage

Sleek high-resolution building facades and lobby displays

Frequently Asked Questions

Questions, Answered

Why choose a 2.38mm pixel pitch for an outdoor display?

Traditional outdoor displays (P4, P5, P10) are designed for far viewing. The 2.38mm fine pitch is specifically engineered for close-viewing environments (2 to 10 meters). If your audience is walking past a storefront, waiting at a bus stop, or riding in a vehicle next to the screen, this pixel pitch ensures the image remains sharp and readable without visible pixelation.

How does the fanless design affect the screen's lifespan?

Fans are mechanical parts that wear out and can suck dust and moisture into the cabinet. Our IP66 fanless design relies on the highly conductive die-casting aluminum cabinet and advanced thermal management to dissipate heat passively. This makes the screen 100% dust and water-tight, significantly reducing maintenance needs and extending the operational lifespan.

Is the 1'×2' (12"×24") size easy to install on vehicles like buses or taxis?

Absolutely. The 1'×2' form factor is a standard, highly versatile size. Weighing only 6.5 kg, it puts minimal stress on vehicle structures. The flexible mounting options and lightweight design make it the industry favorite for transit advertising on buses, trams, and taxis.

Can I control multiple screens remotely?

Yes. The system supports Novastar and Colorlight control cards, allowing you to manage your entire network of screens via WiFi or 4G. You can schedule content, adjust brightness based on ambient light, and monitor screen health remotely from a central Windows-based platform.

What happens if an LED module fails?

The screen is designed for front and rear maintenance. You can easily access and replace individual modules or power supplies from the front without needing to dismantle the entire structure, minimizing downtime and maintenance costs.

Ready to Elevate Your Outdoor Visual Experience?

Do not settle for blurry outdoor screens. Upgrade to the crystal-clear ONLY LED 2.38mm Fine Pitch Display. Contact our team for a customized quotation and technical consultation.

Get Your Free Quote
