All-in-oneLED screen 108 inches by ONLYLED has resolution 1920*1080 Pixels. Using 4x4 die-casting aluminium LED cabinet 600x337mm, thickness is only 32mm. All-in-one unit with build-in Novastar contro
Product details

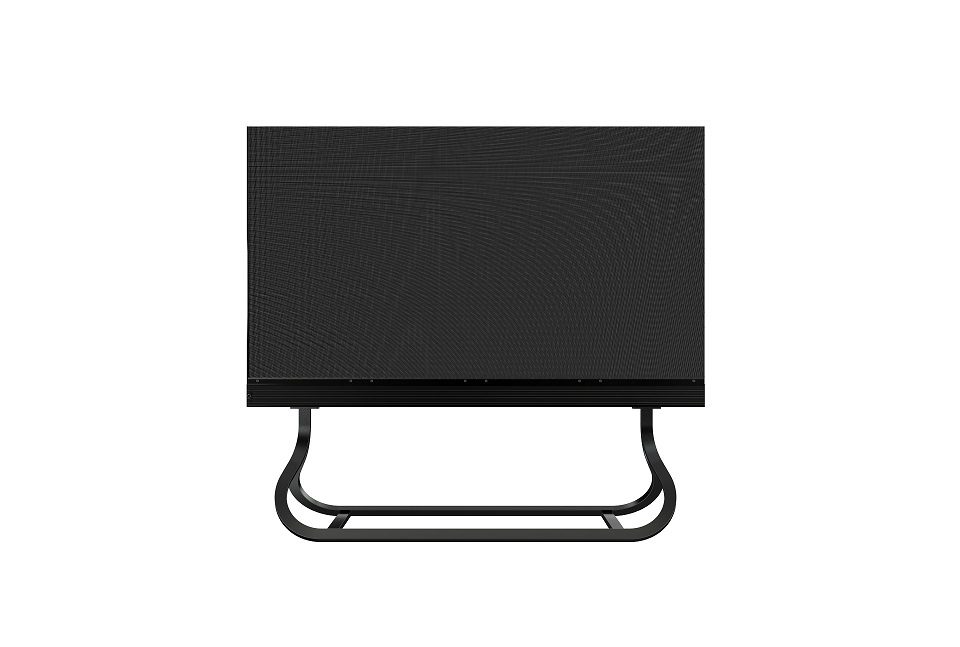

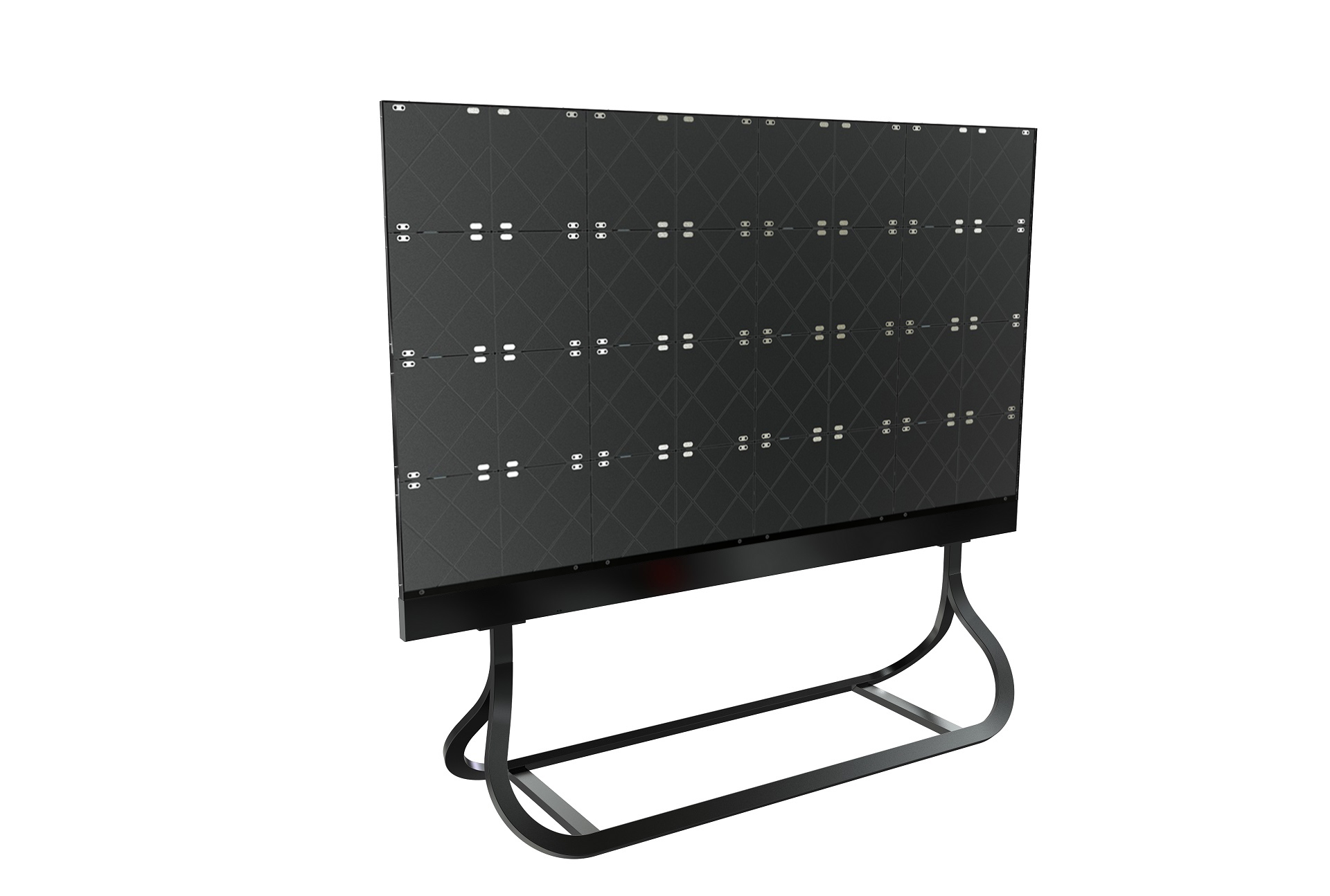

All-in-oneLED screen 108 inches by ONLYLED has resolution 1920*1080 Pixels. Using 4x4 die-casting aluminium LED cabinet 600x337mm, thickness is only 32mm. All-in-one unit with build-in Novastar controller and sensor. it displays content without lines or distortions and provides a more immersive visual experience.it is the most wanted solution for conference video screens or meeting rooms. Support dual-backup of data and power. We provide wall-mount-bracket and floor stand for customers choices.
1.Product introduction
.Screen diagnoal 108 inches
.Cost-effective indoor SMD LED with good brightness 800cd/㎡ to 1000cd/㎡
.seamless and high-resolution FULL HD 1920*1080 pixels gives an immersive experience
.Wide viewing angles allow for maximum audience engagement at short viewing distances
.Minimal power consumption: designed with optimized power supplies to minimize power consumption to a minimum, allowing for a low cost of ownership
.Rugged and lightweight design guarantees reliability
.Uniformity calibration technology provides uniform colors and brightness
.Front installation options and a compact, lightweight design guarantee an easy, quick installation
.The ultimate indoor LED display for image quality assurance, color uniformity and low cost of ownership
2.Product feature and application
. High definition video LED screen 1920*1080pixels suitable for conference/meeting rooms.
. The aluminum die-cast frame allows for a quick installation with precision at the finest pitches
. Elegant appearance, frame color is balck, other colors can be customized
. Big size screen, high refresh rate and NO BEZEL, 1920 x 1080 Pixels suitable for most projections.
. All-in-one unit with controller built-inside, support DVI and HDMI inputs
. Wide viewing angle 160 degrees.
. Front Serviceability,The LED screen can be easily installed and managed from the front side for easy operation.
. Free standing option for customers who can’t choose a wall mount installation.
. Two ways backup of data and power to ensure the functional reliability of the screen.
. Support brightness and chromatic calibrations.
. OEM supported
3.Product parameters
| Model Number | OTV108IN |
| Pixel Pitch | 1.25 mm |
| Pixel Configuration | 3 in 1 SMD 1010 or Mini LED |
| LED screen area (W × H) | 2,400 x 1,348 mm |
| Screen Resolution (W × H) | 1,920 × 1,080 Pixels |
| Frame color | Black (customize other colors) |
| Product overall dimensions (W × H × D) | 2405mm* 1474mm*32mm |
| Screen Weight | ≈80KG |
| No. of Cabinet per Screen (W × H) | 4 × 4 |
| No. of Modules per Cabinet (W × H) | 2 × 2 |
| Cabinet Resolution (W × H) | 480 × 270 pixels |
| Cabinet Dimensions (W × H × D) | 600 × 337 × 32 mm |
| Flatness of Cabinet | ± 0.2 mm |
| Cabinet Material | Die Casting Aluminum |
| Service Access | Front |
| Brightness (Max.) | 800 to 1,000 cd/㎡ |
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizontal) | 160 |
| Visual Viewing Angle (Vertical) | 140 |
| Brightness Uniformity | 95% |
| Color Uniformity | ± 0.015 Cx, Cy |
| Contrast Ratio | 5,000 : 1 |
| Processing Depth | 16 bit |
| HDR Compatibility | HDR10, HDR10 Pro2) |
| Power Consumption (W / Screen, Max.) | 2,000W |
| Power Consumption (W / Screen, Avg.) | 700W |
| Power Supply (V) | AC 100 - 240 V |
| Frame Rate | 50 / 60 Hz |
| Refresh Rate | 3,840 Hz |
| Sound Output | Optional |
| LED Lifetime (Half Brightness) | 100,000 |
| Operating Temperature (°C) | 0 °C to 40 °C |
| Operating Humidity | 10 % to 80 % |
| Video Inputs | HDMI |
| Special Features for option | Temperature Sensor, Ambient Light Sensor |
| Basic Accessory | Data Cable, LAN Cable, Power Cord, Manual |
| Optional Accessory | Screen wall-mount brackets, Floor Stand |
