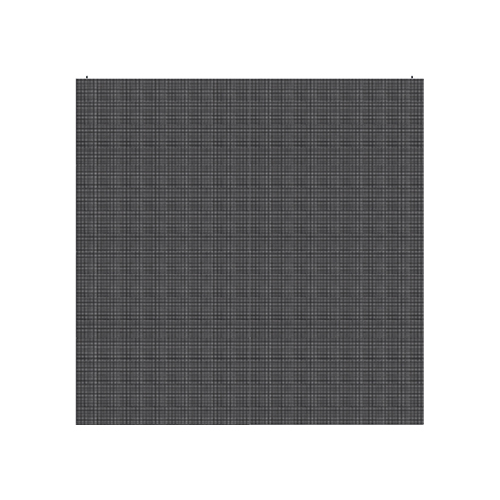

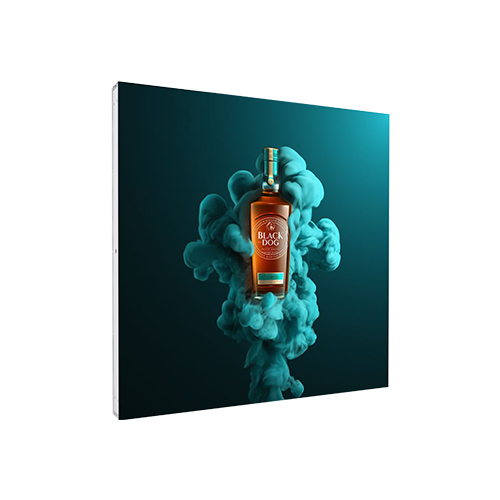

Exterior P7.8 LED Cabinet for Billboard display 8,000~10,000 nits .Billboard display made up of many aluminium tiles, it is suitable for out of home advertising.it adopts Ultra-high luminance SMD 3in1
Product details
Exterior P7.8 LED Cabinet for Billboard display 8,000~10,000 nits .Billboard display made up of many aluminium tiles, it is suitable for out of home advertising.it adopts Ultra-high luminance SMD 3in1 LED lamps, wide viewing angle 110 degrees. Have good contrast under sunlight.it is a reliable digital led screen.
Front and back access installation,1000x1000mm Aluminium Cabinet has Eight modules 250x500mm,each module is IP67 waterproof rating, each module can be dismantled from front side or backside of LED cabinet.It is an economic solution for outdoor digital billboard. Entire product has 60 months limited warranty.
Product introduction
. Good brightness LED displays for exterior video displays.
. Aluminium LED cabinet,high reliability and anti-rusty, LED tile dimension is 1000x5000mm, metric size.
. Good brightness 6,500nits,wide viewing angle
. IP67 waterproof rating, suitable for all kinds of working conditions.
. Suitable for building big size led board.
. easy servicing, loose four screws to dismantle a module from led tile.
. Multi-installation ways.
. Common cathode LEDs.
. Factory warranty period 60 months.
2.Product feature and application
. Metric size led cabinet 1meter high by 1meter wide, suitable for any size LED displays.
. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.
. Fully sealed LED module and power supply box,without fans, Ingress protection 66.
Power and data integrated into one cable and one connector increases functional stability.
. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.
. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.
. Support front and back maintenance
. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.
. Suitable for putting up giant LED billboard,low service costs.
. Common cathode LEDs, the truly energy saving solution.
3.Product parameters
| MODEL NUMBER | XTP-PH7.82-SBD-L8 (Common cathode LEDs) |
| Working Environment | Outdoor Installation |
| LED Cabinet size | 1000 X 1000MM |
| Ingress protection rating | IP66 |
| Cabinet installation type | Permanent install |
| Pixel pitch | 7.82 mm |
| Cabinet material | Extruded Aluminum |
| LED lamp | SMD2727 3in1 Common cathode LEDs |
| Density of pixel | 16384 pixels/㎡ |
| Resolution/cabinet | 128 pixel*128 pixels |
| Average power/cabinet | 190W |
| Max power/cabinet | 546w |
| Driving Method | 1/4 Scan |
| Brightness | ≥8,000 ~10,000 cds/㎡ |
| Cabinet weight (kgs) | 28kgs |
| Installation Access | Front Access /Back access |
| Refresh rate | ≥3000HZ |
| viewing angle/horizontal | 110° |
| Viewing angle/Vertical | 90° |
| Grey scale/display color | 65536/display 16.7M |
| frame frequency | ≥60HZ |
| Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable |
| Input signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITONS |
| Control system | Colorlight and Novastar |
| System Operation Platform | Windows |
| Malfunction do rate | ＜0.0001 |
| AC Input Voltage（V） Frequency（Hz） | 90~240 VAC 50/60 hz |
| Earth leakage current | ＜0.01mA |
| working / Storage temperature | working -30℃～60℃ storage -40℃～85℃ |
| Operating Humidity and Storage Humidity（RH） | 10﹪~95﹪ |
| Certifications | ETL ,CE ,EMC-A, FCC |
| Warranty | FIVE years |
