How to Build a 4'x6' Outdoor LED Sign Using ONLY LED 1'x2' Outdoor LED Display Modules
Outdoor digital LED signs are one of the fastest-growing display technologies across the U.S. signage market. From schools and churches to local stores and community centers, these signs are being used to deliver dynamic messages, service announcements, and advertisements that capture attention both day and night.
Among all the popular configurations, the 4'x6' outdoor LED sign has become a preferred size for American sign shops and installers. It’s compact enough for wall or pole mounting, yet large enough to display vibrant, high-resolution text and video content.At ONLY LED DISPLAY, we make it easier than ever to build a professional-grade 4'x6' LED sign using our U-PRO-S series 1'x2' outdoor LED display modules—a modular solution designed for durability, brightness, and long-term outdoor reliability.
Why Choose the 1'x2' LED Module System
Each ONLY LED 1'x2' LED module (304.8mm x 609.6mm) is made of a high-strength aluminum housing, providing multiple benefits over traditional plastic LED modules:
Better heat dissipation — Aluminum conducts heat away from LEDs and power components, maintaining lower operating temperatures.
No deformation under temperature changes — Unlike plastic, aluminum remains stable under hot sunlight or freezing temperatures.
Superior waterproofing — The structure supports IP66 waterproof rating, ideal for long-term outdoor exposure.
Lightweight and strong — Perfect for installations where wind load and mounting weight are critical.
These modules are fully ETL certified, meeting U.S. and Canadian electrical safety standards, ensuring compliance for use in regulated installations such as schools, municipalities, and churches.
Step-by-Step Guide: Building a 4'x6' Outdoor LED Sign
1. Design and Layout Planning
A 4'x6' LED sign requires twelve (12) pieces of ONLY LED 1'x2' display modules.
Each LED module measures 1 foot high by 2 feet wide, so you’ll assemble:
4 rows high x 3 columns wide = 4ft height x 6ft width
This configuration provides a clean, modular layout that’s easy to assemble, transport, and service.
You can also design the sign as:
Single-face 4'x6' outdoor LED display (mounted on a wall or structure)
Double-face 4'x6' outdoor LED display (for pole-mounted roadside or monument signs)

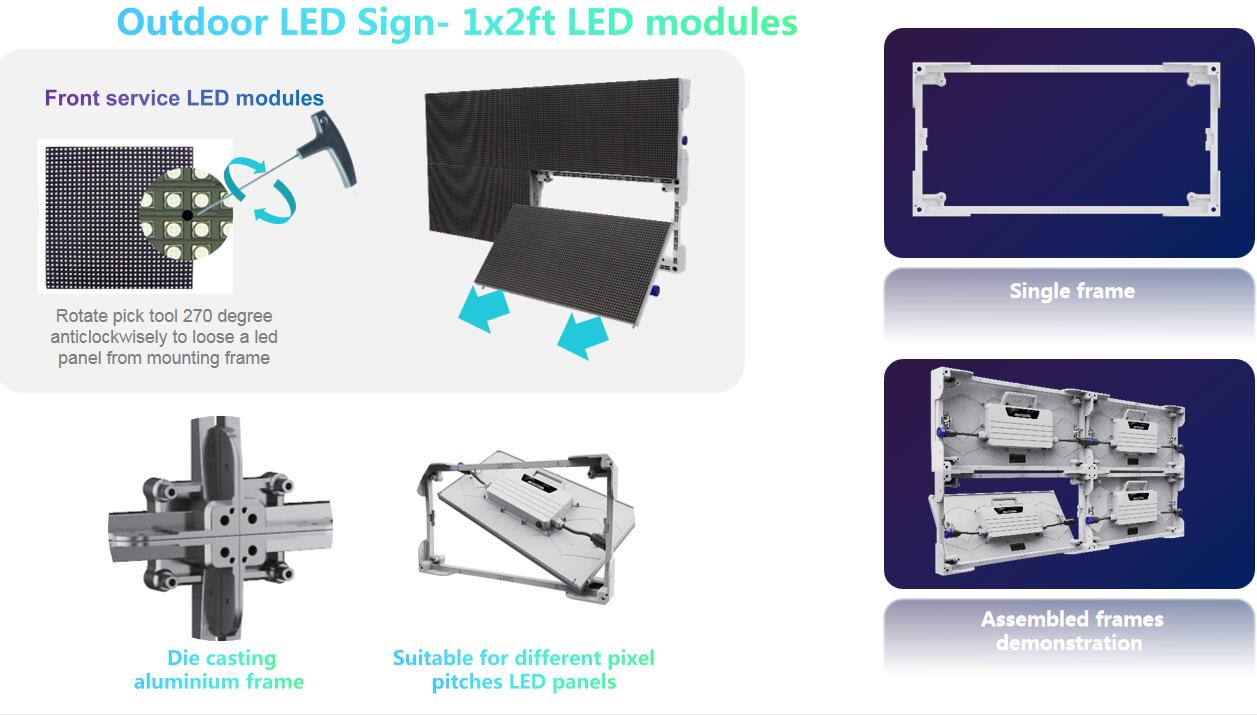

2. Frame and Cabinet Assembly
You can choose between two approaches:
(A) Aluminum Frame Assembly:
Use extruded aluminum profiles to create a rigid support frame. ONLY LED provides pre-fabricated extrusions designed specifically for 1'x2' module mounting.Align the frame according to the 4x6 layout grid.
Fix screws and alignment pins to maintain perfect alignment.
Ensure the frame includes vent holes for airflow.
(B) Preassembled Cabinets:

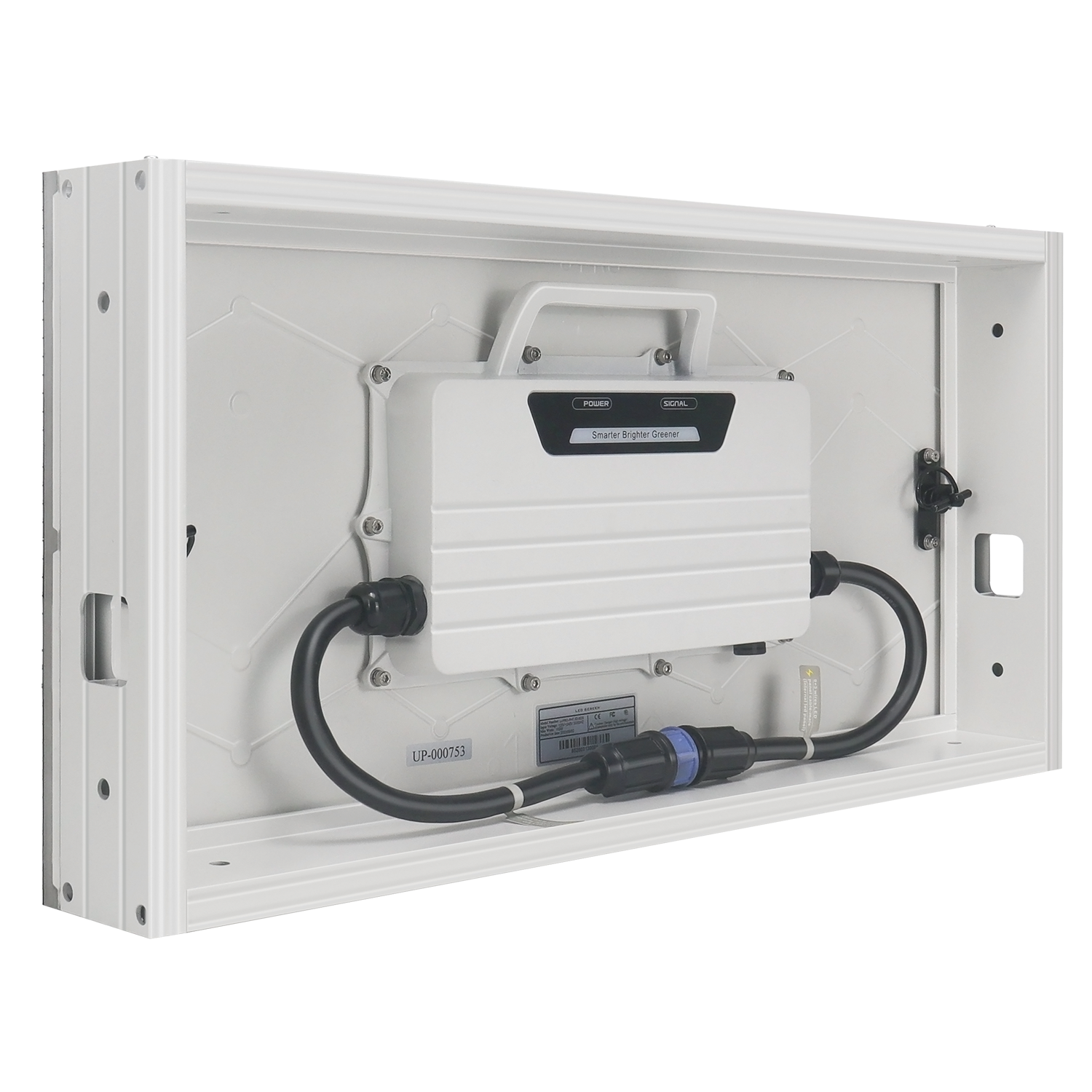

ONLY LED also offers 1'x2' or 2'x4' preassembled aluminum LED cabinets, making installation faster and easier.
These cabinets come with pre-wired power and data interfaces, simplifying connection and maintenance.
All cabinets are compatible with front or rear service designs, allowing maintenance flexibility.

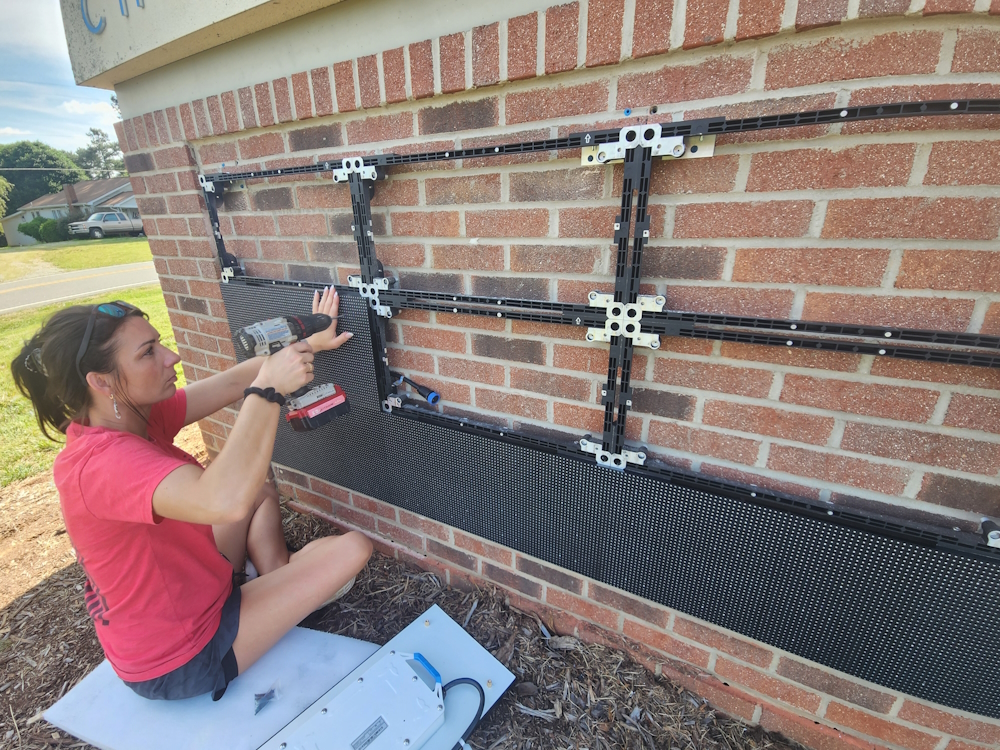

3. Mounting the Modules
Once your frame or cabinets are secured, attach the LED modules:
Position each 1'x2' LED module according to the layout plan.
Use allen key to mount the modules into the frame.
Make sure the waterproof gaskets are seated correctly between module cable connectors to maintain an IP66 rating.
Check for consistent alignment and no visible gaps—this ensures seamless visual performance.
4. Power System and Electrical Wiring
Each LED module requires a AC 110 TO 240V power input.
Typically, a 4'x6' sign is powered by 4 circuits, depending on the pixel pitch (e.g., P6.35, P7.62, P9.52).
Power wiring tips:
Each row of LED modules should have one independent circuit input.
Use industrial-grade waterproof connectors to ensure durability.
ALWAYS ground the cabinet properly for safety and lightning protection.
Keep power cable runs as short as possible to minimize voltage drop.
ONLY LED’s engineers recommend using dual voltage power units for the best performance and lifespan.
5. Signal and Control System

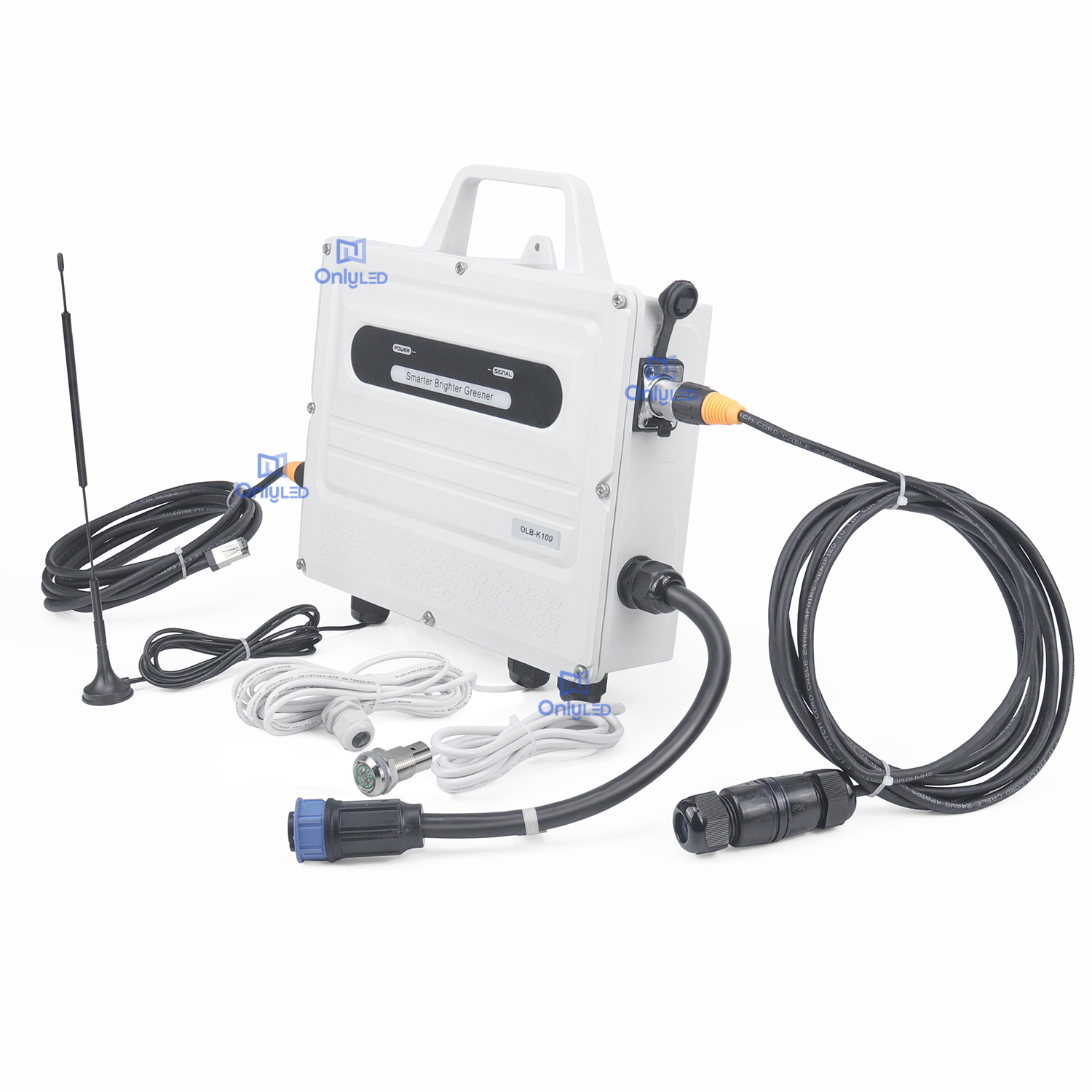

This is where ONLY LED’s Brain Box comes into play—a compact, all-in-one outdoor LED sign controller that manages power, data, and brightness control.
Key Brain Box Features:
Fully waterproof and outdoor-rated
Built-in light sensor that automatically adjusts LED brightness according to ambient light
Compatible with Colorlight and NovaStar receiving cards
Supports Wi-Fi, LAN, or 4G communication (depending on setup)
Easy plug-and-play configuration for 1'x2' or 2'x4' modular layouts

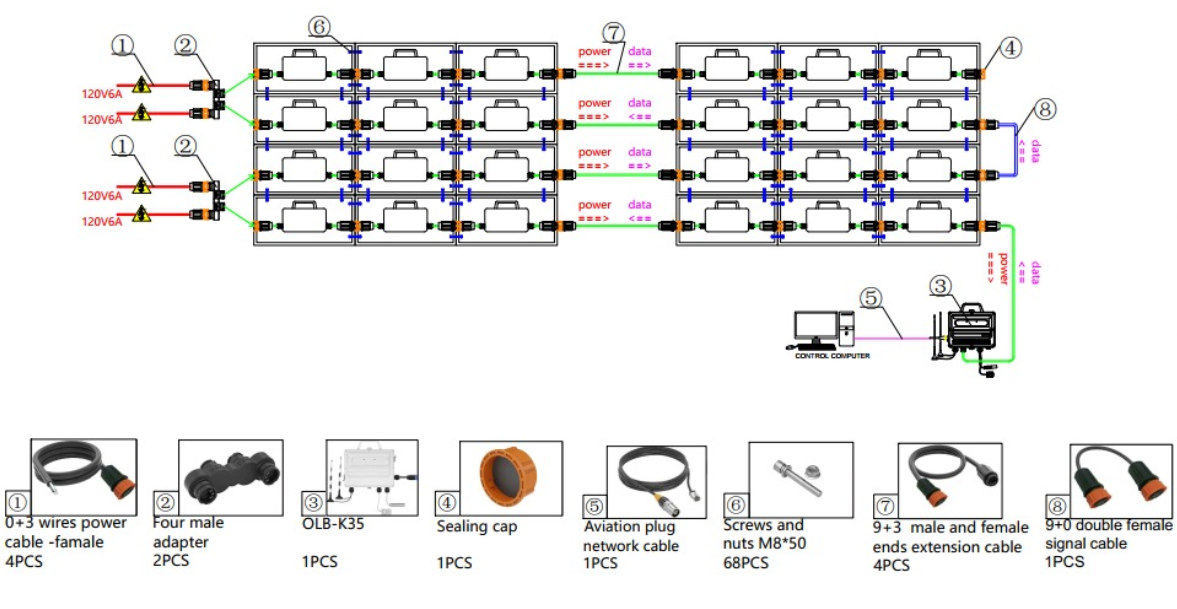

To connect the system like below diagram.
6. Brightness and Performance Testing
A properly configured 4'x6' sign can reach up to 10,000 nits brightness, making it easily readable under direct sunlight.
ONLY LED’s outdoor modules use high-brightness SMD LEDs with high contrast ratios to deliver clear and vivid colors.
During testing:
Verify color uniformity across all modules.
Adjust brightness and refresh rate settings (≥3840Hz recommended for smooth video).
Ensure automatic brightness adjustment works correctly with the Brain Box light sensor.
7. Waterproofing and Sealing
After wiring and testing, seal all cabinet joints with industrial silicone.
Check that:
All connectors are waterproof (IP67 or higher).
Back doors (if used) are tightly closed and gasketed.
Drain holes and air vents are properly installed for moisture control.
ONLY LED’s aluminum modules already feature sealed LED masks and potting glue behind the PCB, ensuring complete protection against rain and humidity.
8. Software Configuration and Content Setup
Use ONLY LED’s recommended software platforms—Colorlight LEDVISION or NovaStar VPlayer/ViPlex Express—to upload and manage content.
Steps:
Connect to the Brain Box controller.
Set resolution (width x height in pixels).
Adjust brightness schedule for day/night.
Upload text, video, or image-based messages.
Schedule content rotation (for businesses or institutions).
This setup allows easy remote updates and monitoring.
9. Maintenance and Service Access
ONLY LED’s 1'x2' modules are designed for front and rear service:
Front service: Remove module screws and access power/data connectors from the front side.
Rear service: Open the back panel or cabinet for full access.
The modular system ensures minimal downtime—if one module fails, it can be replaced in minutes without affecting the rest of the screen.
Advantages of Using ONLY LED Aluminum Modules for Outdoor Signs
Choosing aluminum-based modules offers multiple technical and economic benefits:
Superior heat management: Extends LED lifespan and maintains stable color performance.
High mechanical strength: Withstands wind, vibration, and outdoor stress.
Lightweight structure: Reduces installation load and foundation costs.
Energy-efficient design: Common cathode power solution reduces energy consumption by 20–30%.
Long-term durability: Resistant to UV exposure, corrosion, and water ingress.
Certifications and Compliance
ONLY LED’s outdoor products are ETL certified and CE EMC compliant, ensuring they meet the highest international safety and electromagnetic compatibility standards.
This makes them suitable for North American and European projects, including:
Church LED signs
School message boards
Commercial advertising displays
Municipal and roadside digital signs
Conclusion: Build Smarter, Brighter, and Safer
Constructing a 4'x6' outdoor LED sign using ONLY LED’s 1'x2' aluminum LED display modules provides a professional, scalable, and efficient solution.
It’s a modular system engineered for simplicity, durability, and stunning visual performance — from the ETL-certified electronics to the aluminum cabinet design and the intelligent Brain Box controller.
For businesses, sign builders, and installers looking to deliver high-quality, American-standard outdoor LED signs, ONLY LED DISPLAY offers unmatched reliability and innovation.
