Outdoor P6.35 Aluminium LED cabinet is an ideal product for DOOH (Digital out of home).it uses super-high brightness SMD LED diodes (Common-cathode LEDs) to make max brightness 10,000nits.Good contras

Product details

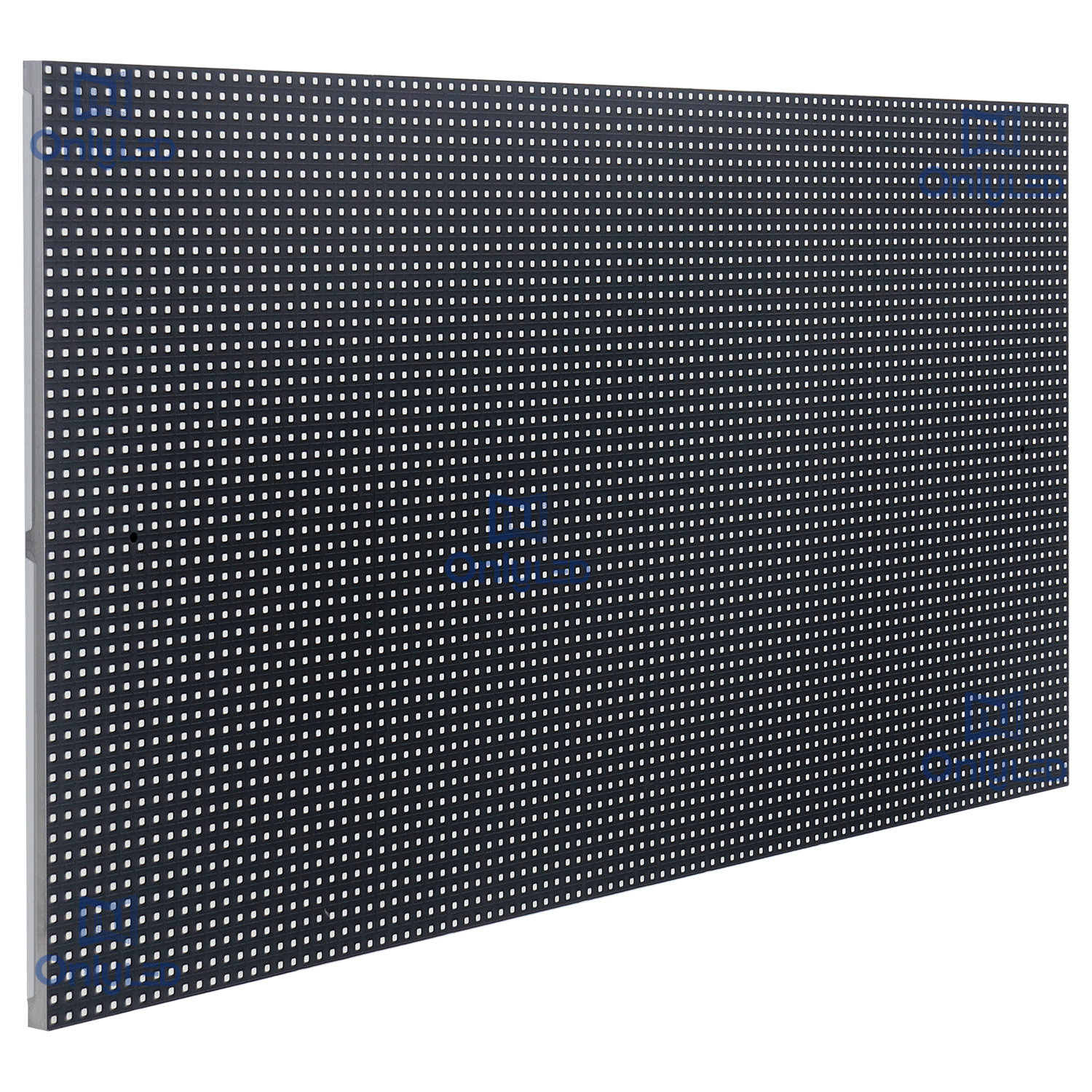

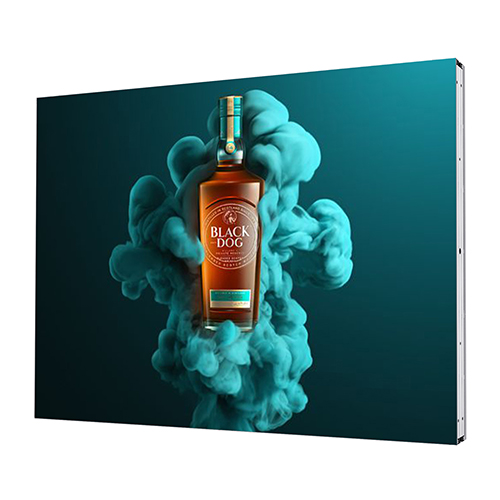

Outdoor 7.62mm Aluminium LED display panel 3x4ft is an ideal product for DOOH (Digital out of home).it uses super-high brightness SMD LED diodes (Common-cathode LEDs) to make max brightness 10,000nits.Good contrast under sunlight.Long life-span digital led screens.

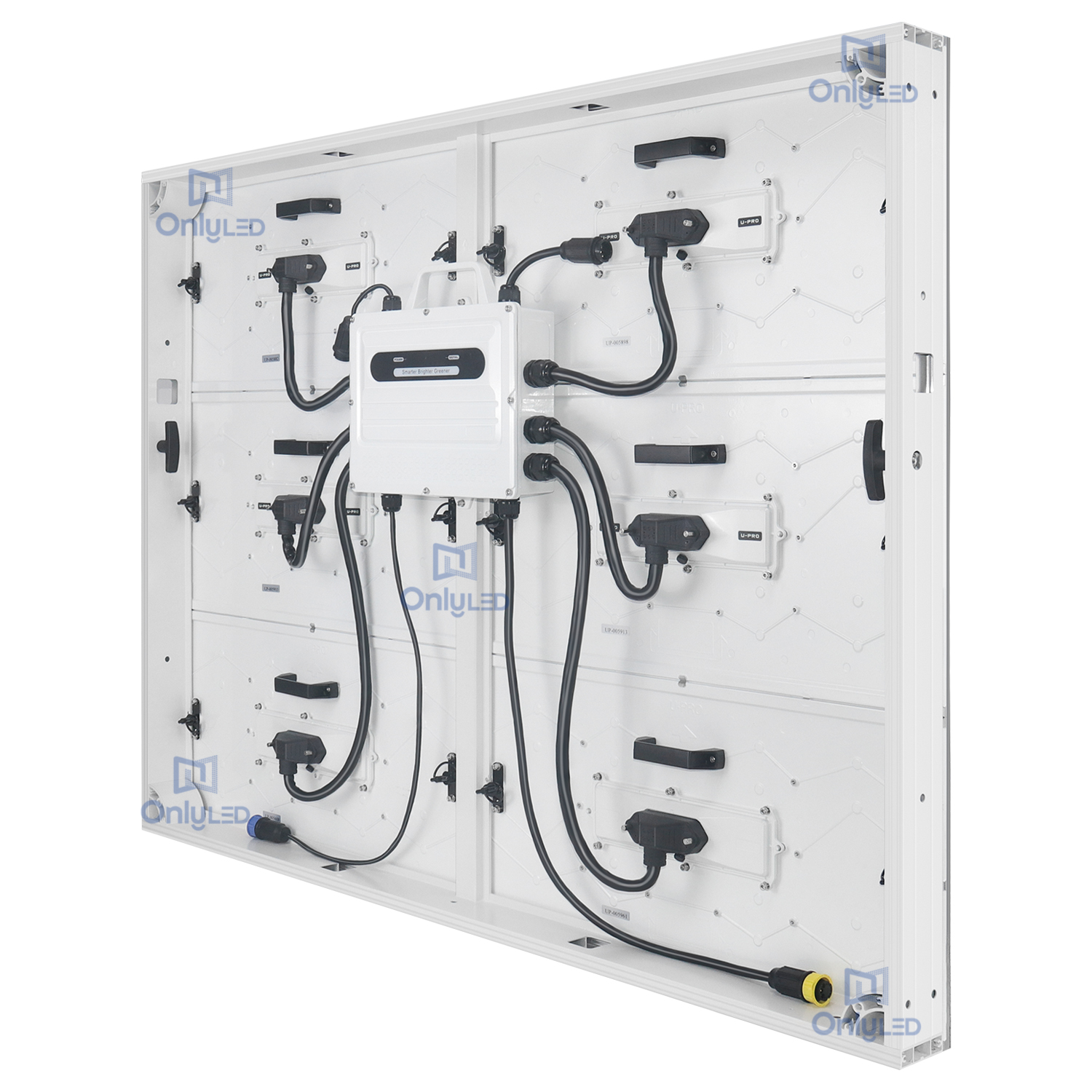

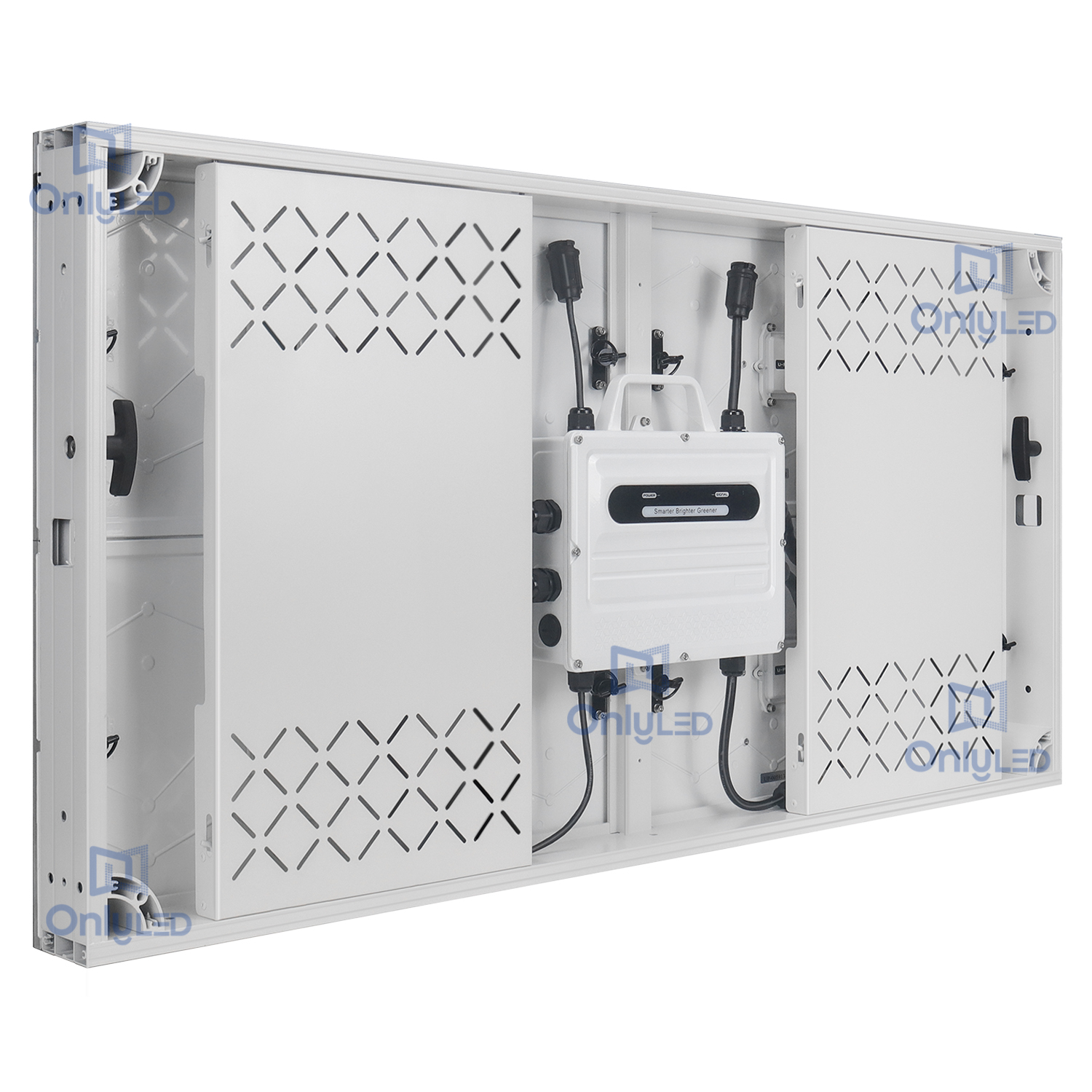

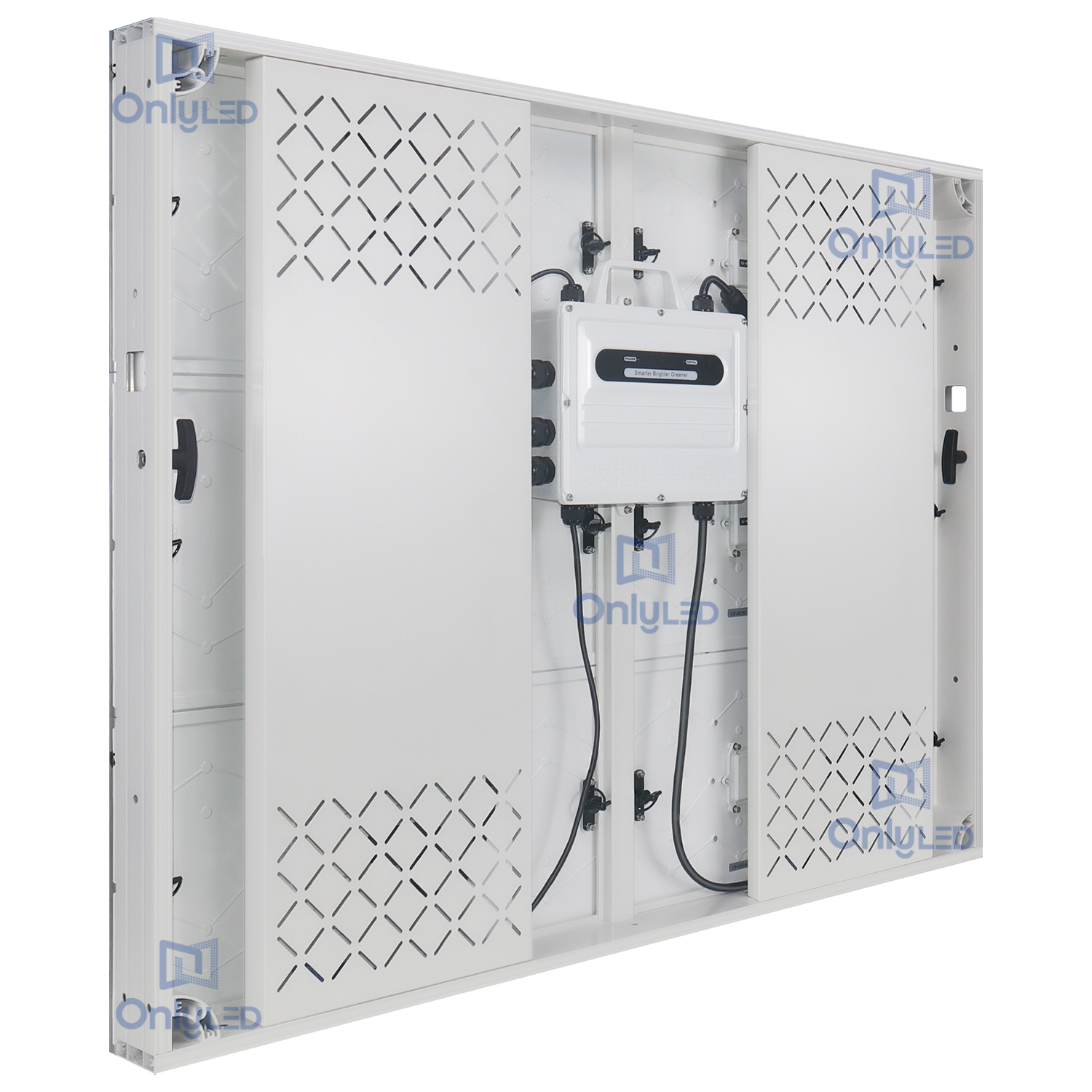

3x4ft aluminium cabinets with modular LED design,Easy maintenance, each 3x4ft Cabinet has 6 LED modules 1x2ft,each module is IP66 waterproof rating, each module can be dismantled from front side or backside of LED cabinet.It is an excellent solution for outdoor digital LED billboard. Entire product has six years limited warranty. At factory-direct prices sales, Your inquiries are welcome.


1.Product introduction


. 3x4ft aluminium LED cabinets, light weight and slim, suitable for Direct view LED displays for outdoor digital billboards.

. Aluminium LED tile,long life-span and anti-erosion.

. Good brightness 10,000nits, high contract even under direct-sunlight.

. IP66 waterproof rating, suitable for all kinds of weather conditions.

. Suitable for building giant led screens and DOOH screens.

. Simple service, undo four screws to dismantle a module from led cabinet.

. Front access installation and back access installation for customer’s choices.

. Factory warranty six years.

. Evergy-saving design, common-cathode LED technologies.


2. Product feature and application


. U.S feet system 2x4ft and 3x4ft, suitable for most size LED displays.

. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED module and power supply box,without fans, Ingress protection 67.

. Power and data integrated into one connector increases functional stability.

. Minimal running gears,reduced cables and connectors, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

. Support front and back maintenance

. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.

. Suitable for putting up big size LED screen,low service costs.

. 30% energy-saving than conventional P6 LED screens.


3. Product parameters


MODEL NUMBERUP-PH7.62-CDL6 (Common cathode   LEDs)
Working   EnvironmentOutdoor use
size of   LED Cabinet  (H*W)3'*4' (914.4mm * 1219.2mm)
Ingress   protection ratingIP66
Cabinet   installation typePermanent install
Pixel   pitch7.62mm
Cabinet   materialExtruded Aluminum frame+   Die-casting aluminium module
LED lampSMD2727 3in1 Common cathode LEDs
Density of pixel /  17,161 pixel
Resolution/cabinet120pixel*160 pixels
Average power/cabinet240W
Max power/cabinet810w
Scan rate1/4 Scan
Max Brightness≥10,000cds/
Cabinet   weight (kgs / Lbs )36kgs /79lbs
Installation   AccessFront Access /Back access
Refresh rate≥3000HZ
viewing angle/H110°
Viewing angle/V90°
Grey scale/display color65536/display   16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Input signalRFS-VideoRGBRGBHVYUVYCCOMPOSITONS
Control systemColorlight and Novastar
System   Operation PlatformWindows OS
Malfunction do rate0.0001
AC Input VoltageV FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
working   / Storage temperatureworking -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
WarrantySIX years
