Outdoor PH9.52 LED cabinet 3'x4' for LED display-aluminium modules
  • ONLYLED
  • CHINA
  • 1000pcs /month
  • 1000pcs

The most popular pixel pitch 9.525mm for outdoor billboard display and DOOH (Digital out of home).it uses super-high brightness SMD LED diodes (Common-cathode LEDs) to make max brightness 10,000nits.G

Product details

The most popular pixel pitch 9.525mm for outdoor billboard display and DOOH (Digital out of home).

it uses super-high brightness SMD LED diodes (Common-cathode LEDs) to make max brightness 10,000nits.Good contrast under sunlight.Contrast ratio 4000:1. Working temperature from -40 Celsius degree to 60 Celsius degree.

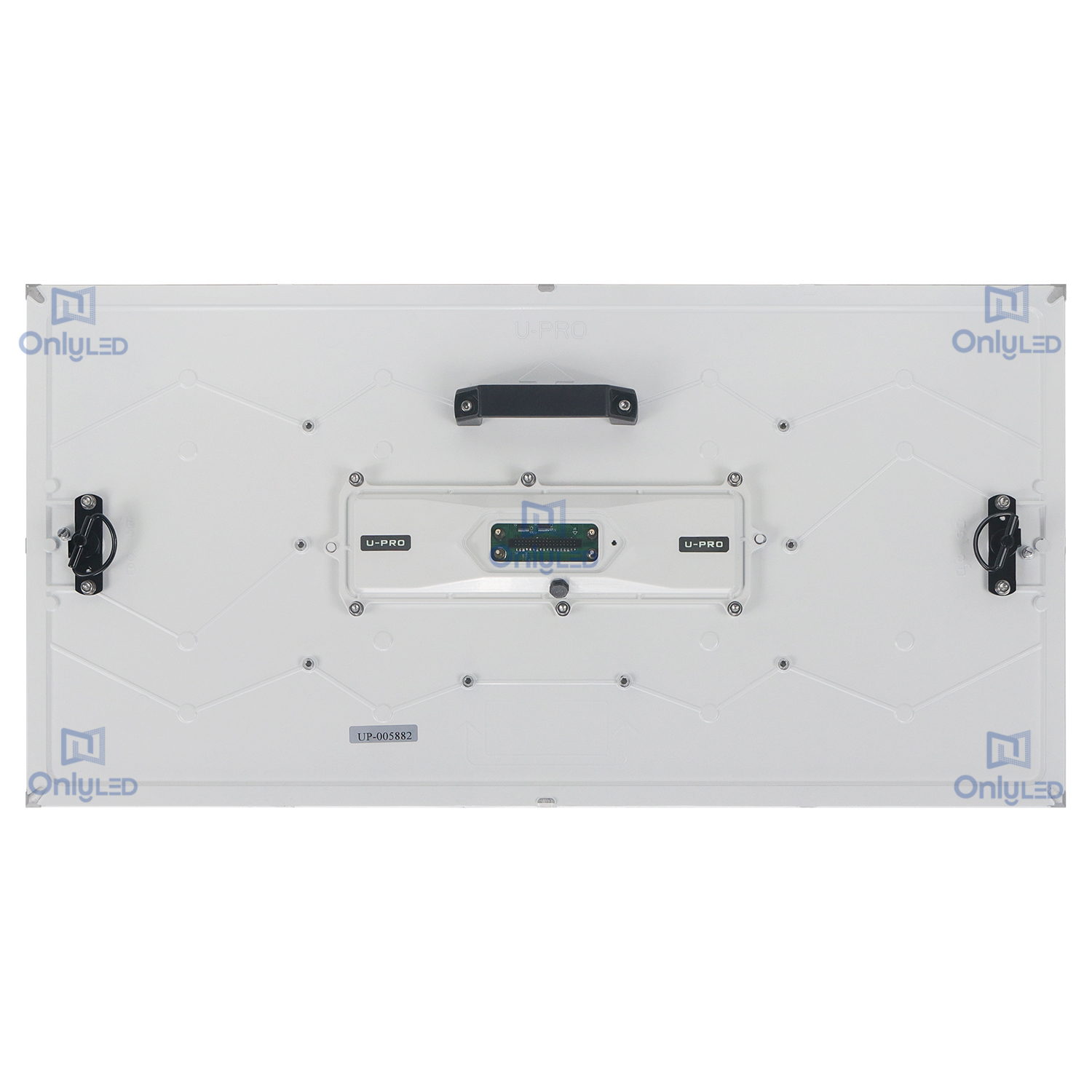

3x4ft aluminium cabinets with aluminium LED modules,front and back maintenance, each 2x4ft Cabinet has four LED modules 1'x2',each module is IP66 waterproof rating, each module can be dismantled from front side or backside of LED cabinet.It is an good solution for outdoor digital LED billboard. Entire product has six years limited warranty.Compatible with nova-star and color-light systems.


1.Product introduction


. 3x4ft aluminium LED cabinets, light weight and slim, suitable for Direct view LED displays for outdoor digital billboards.

. Cabinet made of aluminium, it has strong structure and not go corrupt.

. Good brightness 10,000nits, high contract even under direct-sunlight.

. Power supply box and led modules are both fully sealed, can reach ingress rating 67.

. Suitable for building giant led screens and DOOH screens.

. Simple service, undo four screws to dismantle a module from led cabinet.

. Front access installation and back access installation for customer’s choices.

. Factory warranty six years and 24hours online technical support are provided.

. Evergy-saving design, common-cathode LED technologies.


2.Product parameters


MODEL NUMBERUP-PH9.5-CDL6 (Common cathode   LEDs)
Working   EnvironmentOutdoor use
LED   Cabinet size (H*W)3'*4' (914.4mm * 1219.2mm)
Ingress   protection ratingIP66
Cabinet   installation typePermanent install
Pixel   pitch9.525 mm
Cabinet   materialExtruded Aluminum frame+   Die-casting aluminium module
LED   DiodeSMD2727 3in1 Common cathode LEDs
Density of pixel /  11,022 pixel
Resolution/cabinet96pixel*128 pixels
Average power/cabinet240W
Max power/cabinet800w
Scan rate1/4 Scan
Max Brightness≥11,000cds/
Cabinet   weight (kgs / Lbs )36kgs /80lbs
Maintenance   accessFront and back maintenance
Refresh rate≥3000HZ
Viewing angle/H110°
Viewing angle/V90°
Grey scale/display color65536/display   16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Input signalRFS-VideoRGBRGBHVYUVYCCOMPOSITONS
Control systemColorlight and Novastar
System   Operation PlatformWindows OS
Malfunction do rate0.0001
AC Input VoltageV FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
Working   / Storage temperatureworking -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
Warranty   period6 years warranty
