Exterior P7.62 LED tile for Billboard display 8,000~10,000 nits .Billboard display made up of many aluminium tiles, it is suitable for out of home advertising.it adopts Ultra-high luminance SMD 3in1 L

Product details

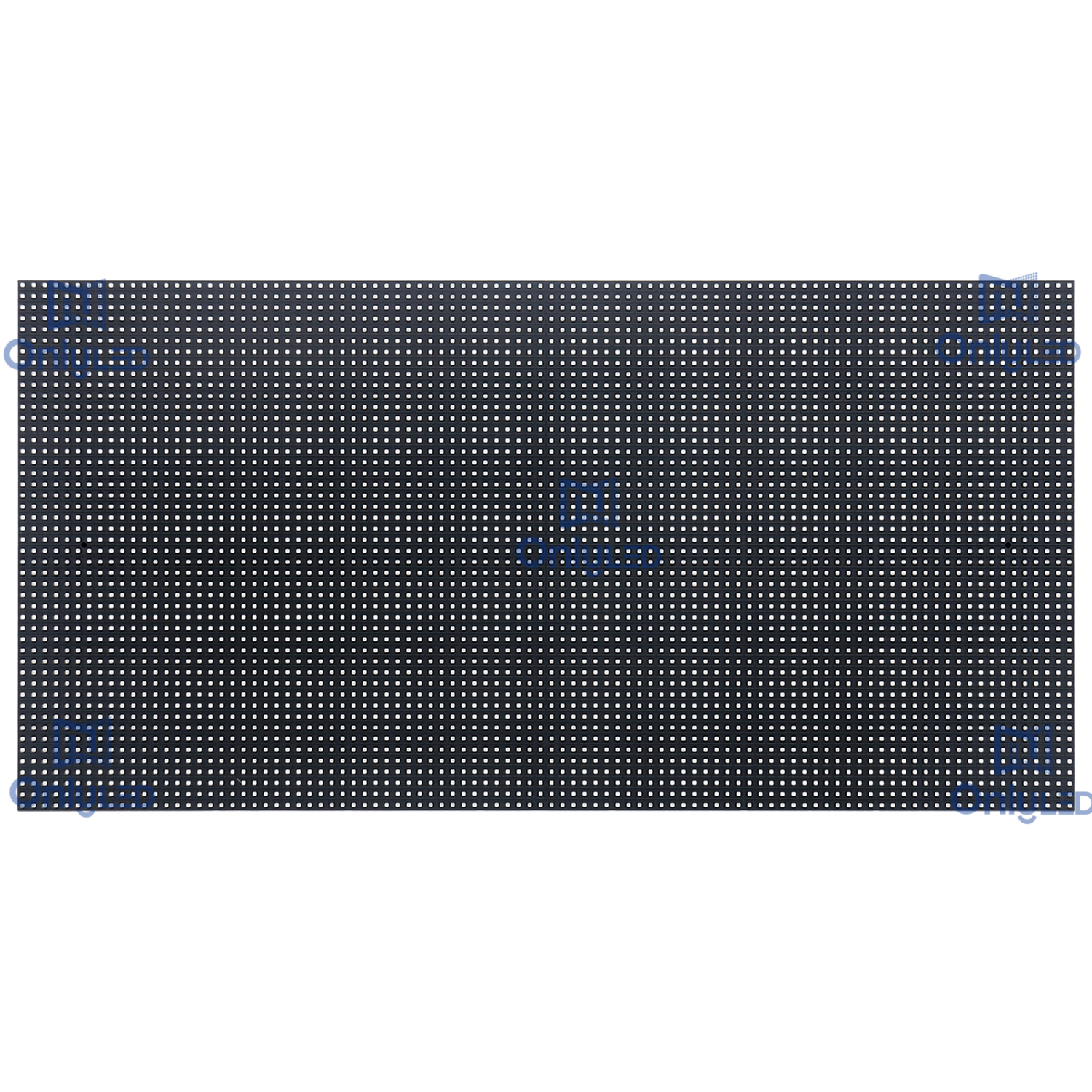

Exterior P7.62 LED tile for Billboard display 8,000~10,000 nits .Billboard display made up of many aluminium tiles, it is suitable for out of home advertising.it adopts Ultra-high luminance SMD 3in1 LED lamps, wide viewing angle 110 degrees. Have good contrast under sunlight.it is a reliable digital led screen.

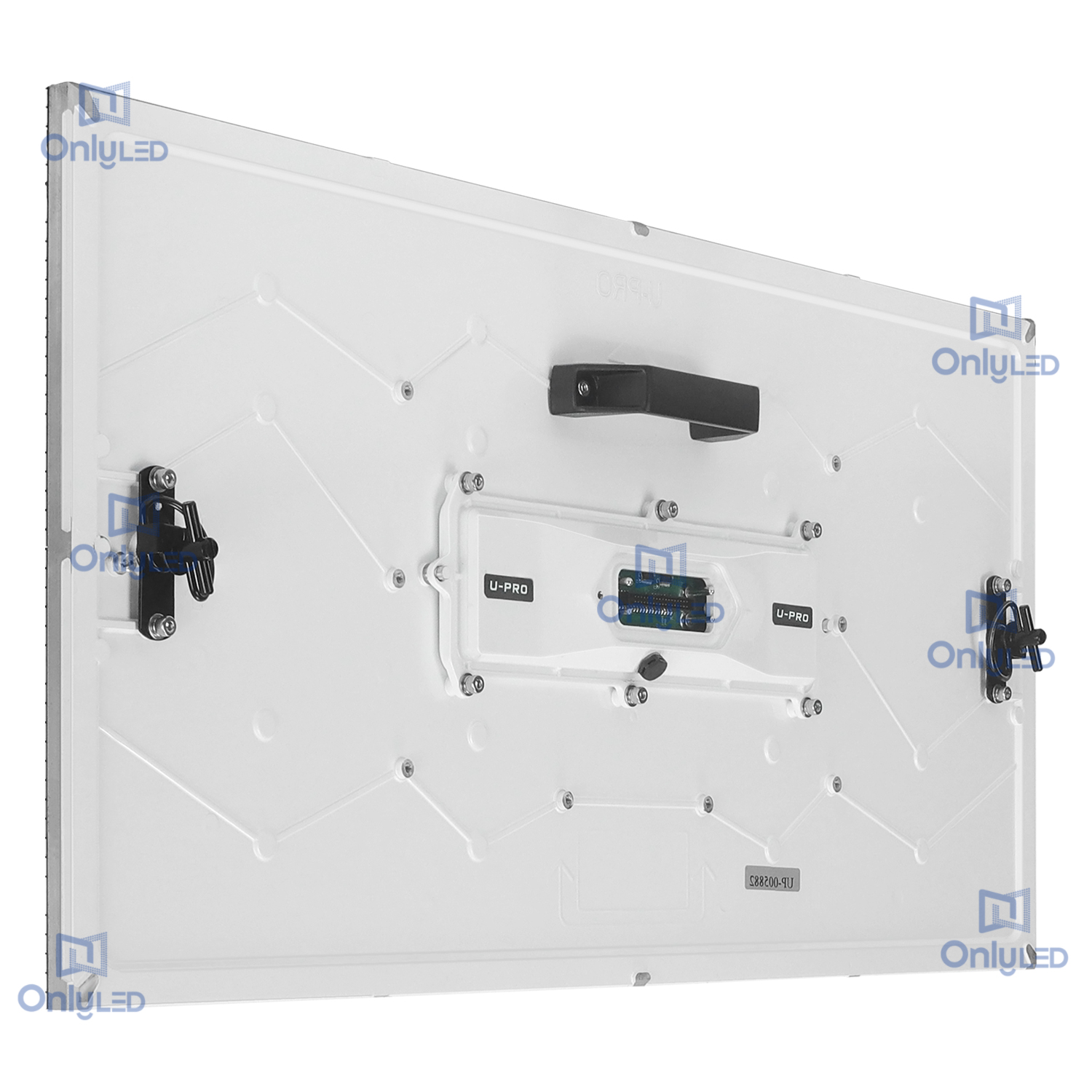

Front and back access installation,2x4ft Aluminium LED Cabinet has 4 LED modules 1'x2',each module is IP67 waterproof rating, each module can be dismantled from front side or backside of LED cabinet.It is an economic solution for outdoor digital billboard. Entire product has 60 months limited warranty.


1.Product introduction


. Good brightness LED displays for exterior video displays.

. Aluminium LED cabinet,high reliability and anti-rusty, LED tile dimension is 1x2ft.

. Good brightness 9,500nits,wide viewing angle

. IP67 waterproof rating, suitable for all kinds of working conditions.

. Suitable for building big size led board.

. easy servicing, loose four screws to dismantle a module from led tile.

. Multi-installation ways.

. Common cathode LEDs.

. Factory warranty period 60 months.


2.Product feature and application


. foot system 2x4ft and 3x4ft, suitable for any size LED displays.

. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED module and power supply box,without fans, Ingress protection 66.

 Power and data integrated into one cable and one connector increases functional stability.

. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

. Support front and back maintenance

. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.

. Suitable for putting up giant LED billboard,low service costs.

. Common cathode LEDs, the truly energy saving solution.


3.Product parameters


MODEL NUMBERUP-PH7.62-CDL4 (Common cathode   LEDs)
Working   EnvironmentOutdoor use
size of   LED Cabinet  (H*W)2'*4' (609.6mm * 1219.2mm)
Ingress   protection ratingIP66
Cabinet   installation typePermanent install
Pixel   pitch7.62mm
Cabinet   materialExtruded Aluminum frame+   Die-casting aluminium module
LED lampSMD2727 3in1 Common cathode LEDs
Density of pixel /  17,161 pixel
Resolution/cabinet80pixel*160 pixels
Average power/cabinet160W
Max power/cabinet540w
Scan rate1/4 Scan
Max Brightness≥10,000cds/
Cabinet   weight (kgs / Lbs )26kgs /57lbs
Installation   AccessFront Access /Back access
Refresh rate≥3000HZ
viewing angle/H110°
Viewing angle/V90°
Grey scale/display color65536/display   16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Input signalRFS-VideoRGBRGBHVYUVYCCOMPOSITONS
Control systemColorlight and Novastar
System   Operation PlatformWindows OS
Malfunction do rate0.0001
AC Input VoltageV FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
working   / Storage temperature working -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
WarrantySIX years
