14x48ft Outdoor LED Billboard – 9.52mm, 10,000 Nits, Front Service, Energy Saving .High-brightness 14x48ft outdoor LED display with 9.52mm pixel pitch and 10,000 nits brightness. Features front-servic
Product details
14x48ft Outdoor LED Billboard – 9.52mm, 10,000 Nits, Front Service, Energy Saving .High-brightness 14x48ft outdoor LED display with 9.52mm pixel pitch and 10,000 nits brightness. Features front-service aluminum cabinet, common cathode power solution, CE EMC, ETL certified. Ideal for digital advertising. Backed by a 6-year warranty.
14' x 48 ' Outdoor LED billboard Display Specifications | ||||||||
Category | Specification | |||||||
Display Size | 14 ft × 48 ft | |||||||
Total Display Area | 672 sq ft | |||||||
Number of Faces | 1 | |||||||
Physical Resolution (H × W) | 448 × 1536 pixels | |||||||
Total Pixel Count | 688,128 pixels | |||||||
Pixel Pitch | 9.52 mm | |||||||
Brightness | 10,000 nits | |||||||
Warranty | 6 Years | |||||||
Electrical Requirements | ||||||||
Working Voltage | 120V to 240V AC | |||||||
Maximum Power Draw | 336 Amps @ 120V AC | |||||||
Average Power Draw | 120 Amps @ 120V AC |

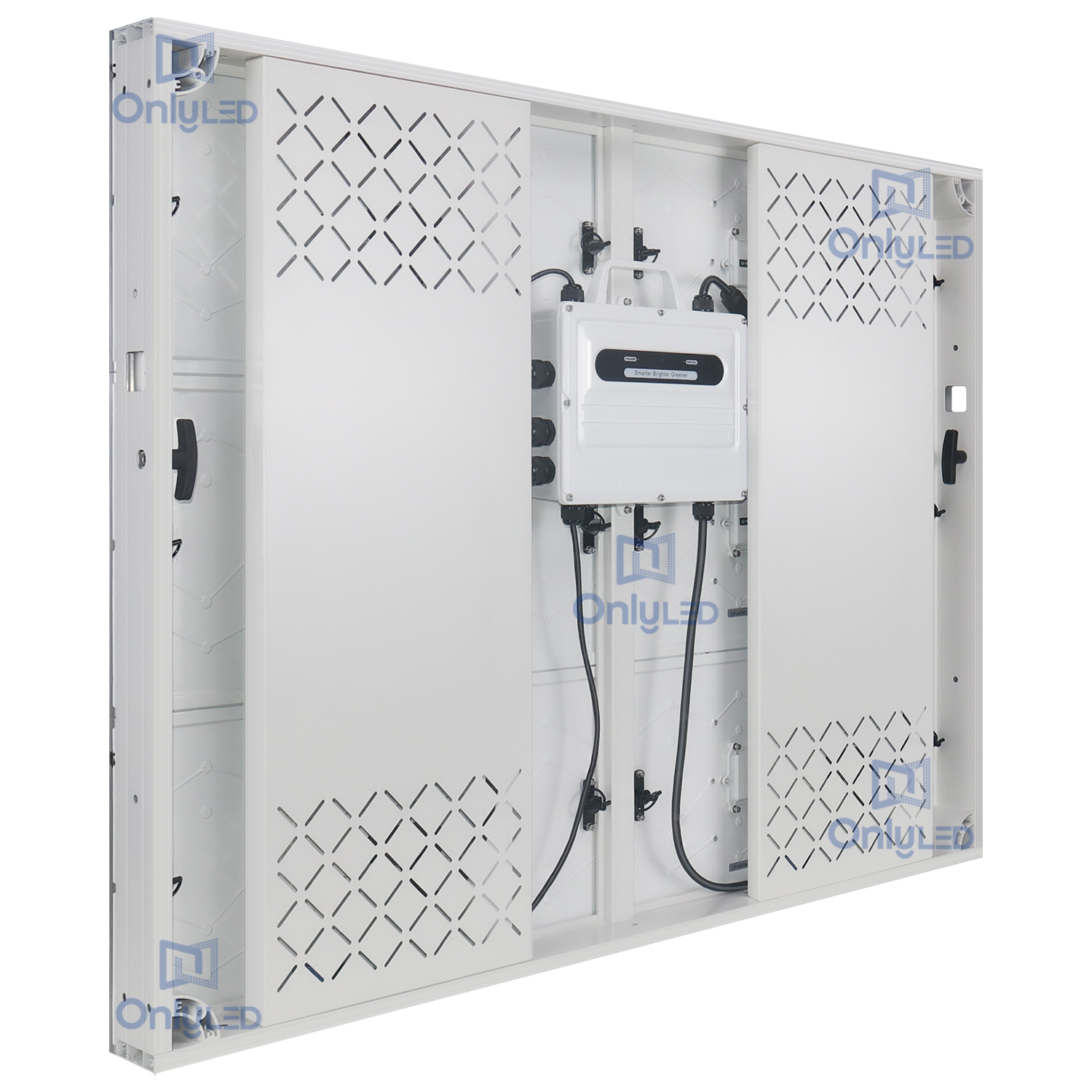

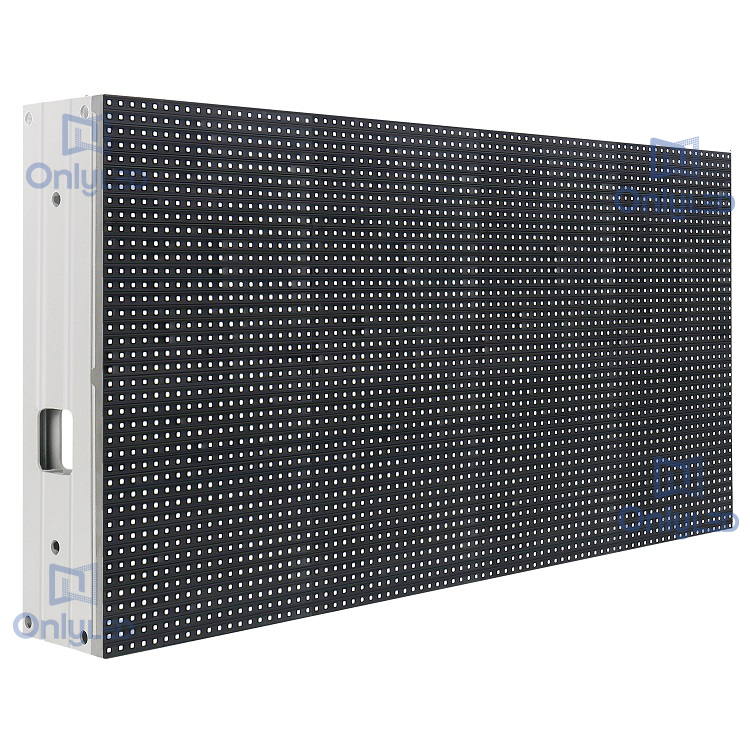

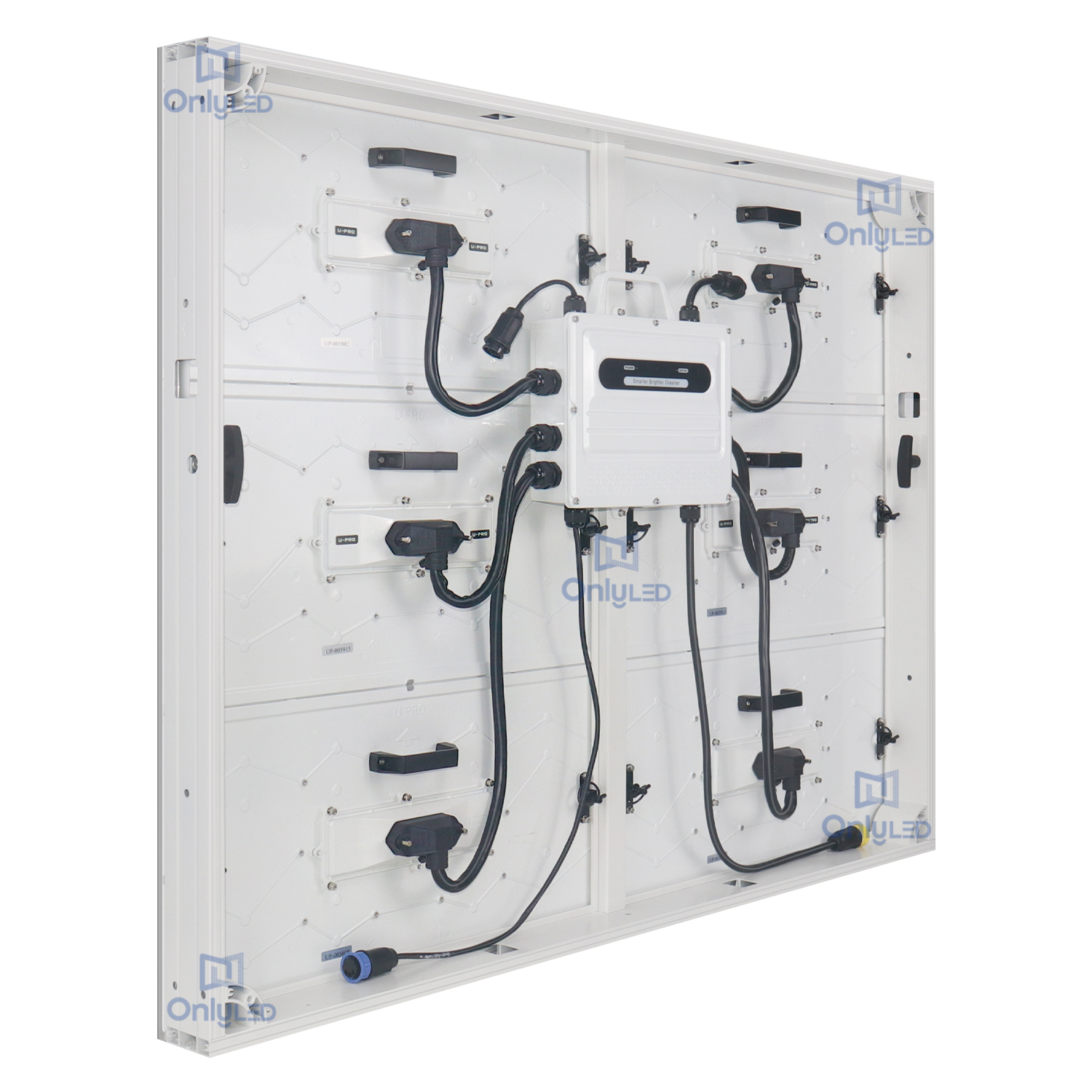

ONLY LED Billboard Display Cabinets – 2'x4' and 3'x4'
ONLY LED DISPLAY’s outdoor LED billboard cabinets are engineered for high-brightness, energy-efficient performance in all weather conditions. Available in 2'x4' and 3'x4' sizes, they are ideal for large-format signage such as pole signs, wall-mounted LED displays, and double-sided billboards.
Key Features:
Front-Serviceable Modular Design – Easy installation and maintenance
Die-Cast Aluminum Housing – Strong, lightweight, with excellent heat dissipation
Common Cathode Power System – Low heat, energy-saving design
Ultra-High Brightness – Up to 10,000 nits for clear daytime visibility
Slim & Lightweight – Ideal for space-limited and double-sided installations
Certifications – CE EMC/LVD, FCC, ETL, RoHS

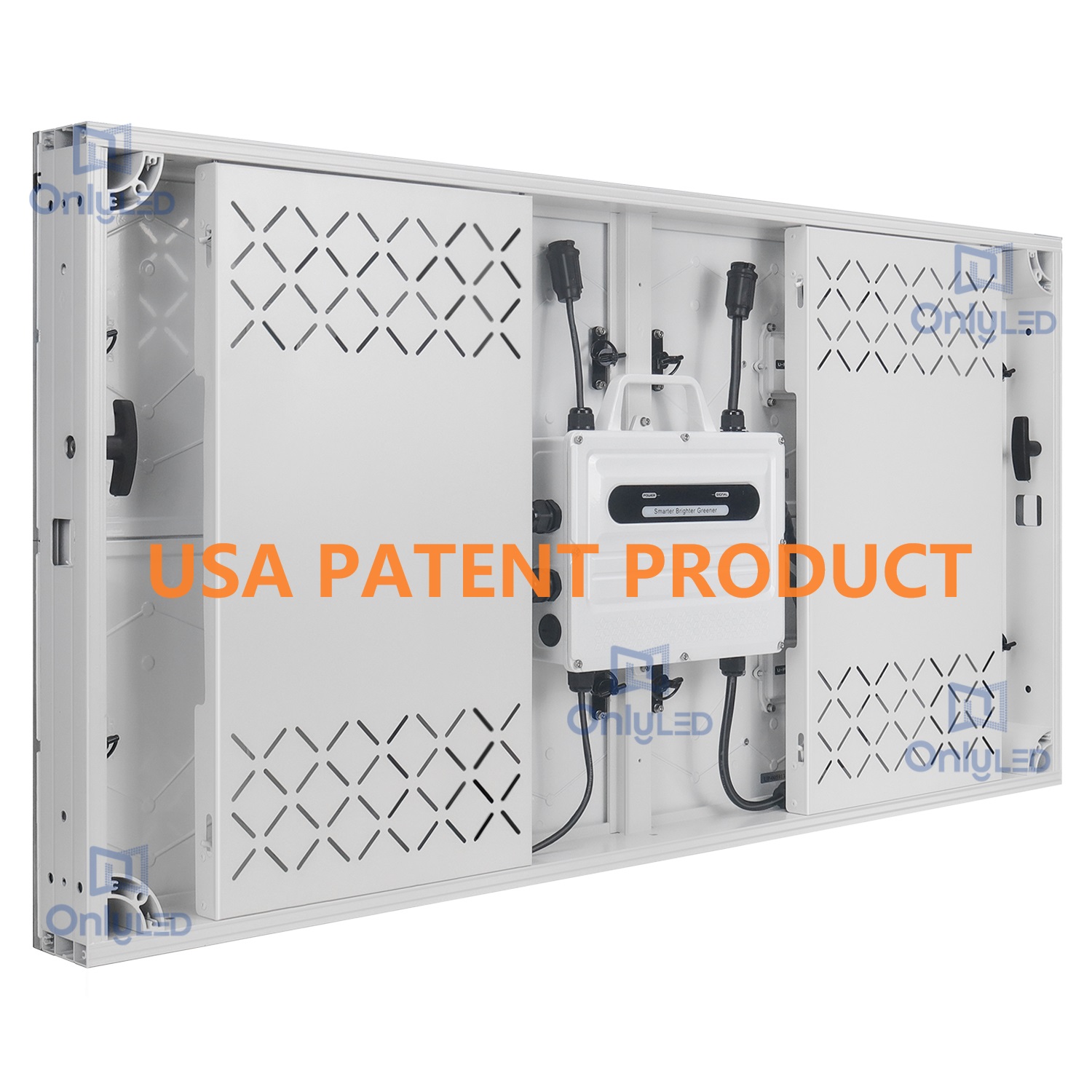

U.S. Patent No. US11871528B1 – Protected structure and power design
6-Year Warranty – Reliable, long-term outdoor performance
2'x4' and 3'x4' LED Panel Main Specifications | ||||||||
MODEL NUMBER | UP-PH9.52-CDL4 / UP-PH9.52-CDL6 | |||||||
LED cabinet Size | 2'x 4' / 3 'x4' | |||||||
Pixel Pitch | 9.52mm | |||||||
LEDs | SMD2727 Golden wire SMD | |||||||
Weight | 51Lbs / 70 Lbs | |||||||
Density of pixel | 11022pixel/㎡ | |||||||
Resolution/Cabinet | 64pixel*128pixel / 96 pixel*128pixel | |||||||
viewing angle/horizontal | 110° | |||||||
Viewing angle/Vertical | 90° | |||||||
Average power/Panel (W) | 160W / 225W | |||||||
Max power/Panel (W) | 480W / 642 W | |||||||
Driving Method | 1/4 Scan | |||||||
Refresh rate | ≥3000HZ | |||||||
Brightness | ≥10,000cds/㎡ | |||||||
Working environment | Outdoor | |||||||
Waterproof | IP66 | |||||||
Grey scale/display color | 65536/display 16.7M | |||||||
frame frequency | ≥60HZ | |||||||
Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable | |||||||
Control system | Colorlight and Novastar | |||||||
System Operation Platform | Windows | |||||||
Average no Failure time | ≥10000hrs | |||||||
Lifetime of Led | ≥100000hrs | |||||||
Malfunction do rate | <0.0001 | |||||||
Working Voltage | 120V to 240V AC | |||||||
Earth leakage current | <0.01mA | |||||||
working / Storage temperature | Working -30℃~60℃ Storage -40℃~85℃ | |||||||
Certificates | CE EMC LVD FCC ETL /UPSTO Patent No. US11871528B1 |
Why Choose Digital LED Billboards?
Digital LED billboards offer unmatched flexibility and impact compared to traditional static signage. With vibrant full-color visuals, dynamic content scheduling, and real-time updates, they allow you to run multiple ads from one screen — increasing engagement and revenue. Perfect for roadside advertising, retail promotions, event announcements, and community messaging, LED billboards deliver visibility 24/7, in any weather.
Benefits of Digital LED Billboards:
Display multiple rotating ads
Remotely manage content anytime
Ultra-bright and readable in daylight
Cost-effective over time with no printing
Boosts brand visibility and ROI
Why Choose ONLY LED’s 2'x4' and 3'x4' LED Billboard Cabinets?
ONLY LED’s 2'x4' and 3'x4' LED display cabinets are engineered for maximum durability, energy efficiency, and low maintenance — ideal for outdoor digital billboard applications.
Key Advantages:
Premium Materials – Die-cast aluminum housing ensures excellent heat dissipation, rust resistance, and long-term structural strength
Weatherproof & Rugged – Built for harsh outdoor environments with IP-rated protection and front-service access
Energy-Saving Technology – Common cathode power design reduces heat and lowers electricity bills
Extreme Brightness – Up to 10,000 nits for perfect visibility even under strong sunlight
Slim & Lightweight Design – Ideal for wall-mounted and double-sided billboard installations
Certified & Patented – CE EMC/LVD, ETL, FCC, RoHS compliant, with U.S. Patent No. US11871528B1
6-Year Warranty – Long-term peace of mind backed by factory-supported warranty and proven reliability
What ONLY LED Can Do for You
ONLY LED DISPLAY is more than just a supplier — we are your complete LED display partner from factory to field. Here’s what we can do to support your LED billboard project:
1. We Are a Direct LED Display Factory
ONLY LED is a 100% true LED display manufacturer. No middlemen. We control production, quality, and delivery — offering you factory pricing, fast lead times, and full customization.
2. We Supply Cabinets with Structural Drawings
We provide standard cabinet sizes such as 2'x4' and 3'x4', along with detailed structural drawings to assist with billboard design, engineering, and permit applications in your local area.
3. We Offer Software Training
We provide complete training on LED control software and display management systems so your team can confidently operate and schedule content on your LED billboard.
4. We Can Send Engineers for On-Site Support
Our experienced technicians are available for overseas installation support, including LED cabinet assembly, screen alignment, wiring, and system configuration.
5. We Customize to Fit Your Project
From cabinet size and layout to power systems and branding, we offer full customization and OEM/ODM service to meet your specific requirements.
Why Work With ONLY LED?
Over 19 years of LED manufacturing experience
Energy-efficient, ultra-bright LED displays (up to 10,000 nits)
CE EMC, LVD, ETL, FCC, RoHS certified
Protected by U.S. Patent No. US11871528B1
6-year product warranty
Professional and responsive after-sales service
Fast production and worldwide delivery
ONLY LED DISPLAY – Smarter. Brighter. Greener.
Your reliable partner for LED billboard displays and total project support.
