Product details

The skyline series premium LED display by ONLYLED. Outdoor 6.35mm pixel pitch LED panel has super brightness 10,000nits.IP66 Ingress protection rating. 1x2ft LED panel dimension is a perfect size for United states market.ONLYLED provide with modular mounting frames for quick assemble and quick services of LED signs. All ONLYLED PRODUCTS support front and rear access installations.Wish our bright LED sign can bright our business future.

1.Product introduction

. 12" by 24", The Perfect size for american market(1x2ft).

. Several patents pending, including global patents.

. Suitable for retrofitting conventional back-lite signs into digital signs.

. LED panel housing made of aluminium materials, excellent cooling effect, working temperature -40℃ to 60℃.

. Fanless LED panel design, all electronics fully sealed in the LED panel, entire product IP66 rating.

. Die-casting and extruded aluminium mounting frames are available for customers choices, customer can assemble a 4x8ft sign in 30min.

. Support front service and back service installation ways.

. Support both vertical and horizontal orientation installation ways.

. ETL listed LED sign modules by intertek Laboratory. FCC approved.

. Common cathode LED screens, 30% energy saving than common anode LED screens.

. Max brightness 8000cd/m2.

. OEM service provided

2.Product feature and application

. High resolution LED panels 3.81mm pixel pitch,a good product for outdoor commercial advertising screens,video-walls and billboards.

. Retrofitting conventional back-lite signs in north-america to digitl signs,size 1x2ft perfectly fit.

. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED cabinet,without fans, Ingress protection 67.

. Power and data integrated into one cable and one connector increases functional stability.

. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

. Support front and back maintenance,Support landscape and portrait installation

.Good heat dissipation, Driving IC stick to aluminium plate,Aluminium LED panel body has really good heat discharging.ensure the entire led panel have uniform temperature thus has uniform brightness,this perfectly solve the color-splotches.

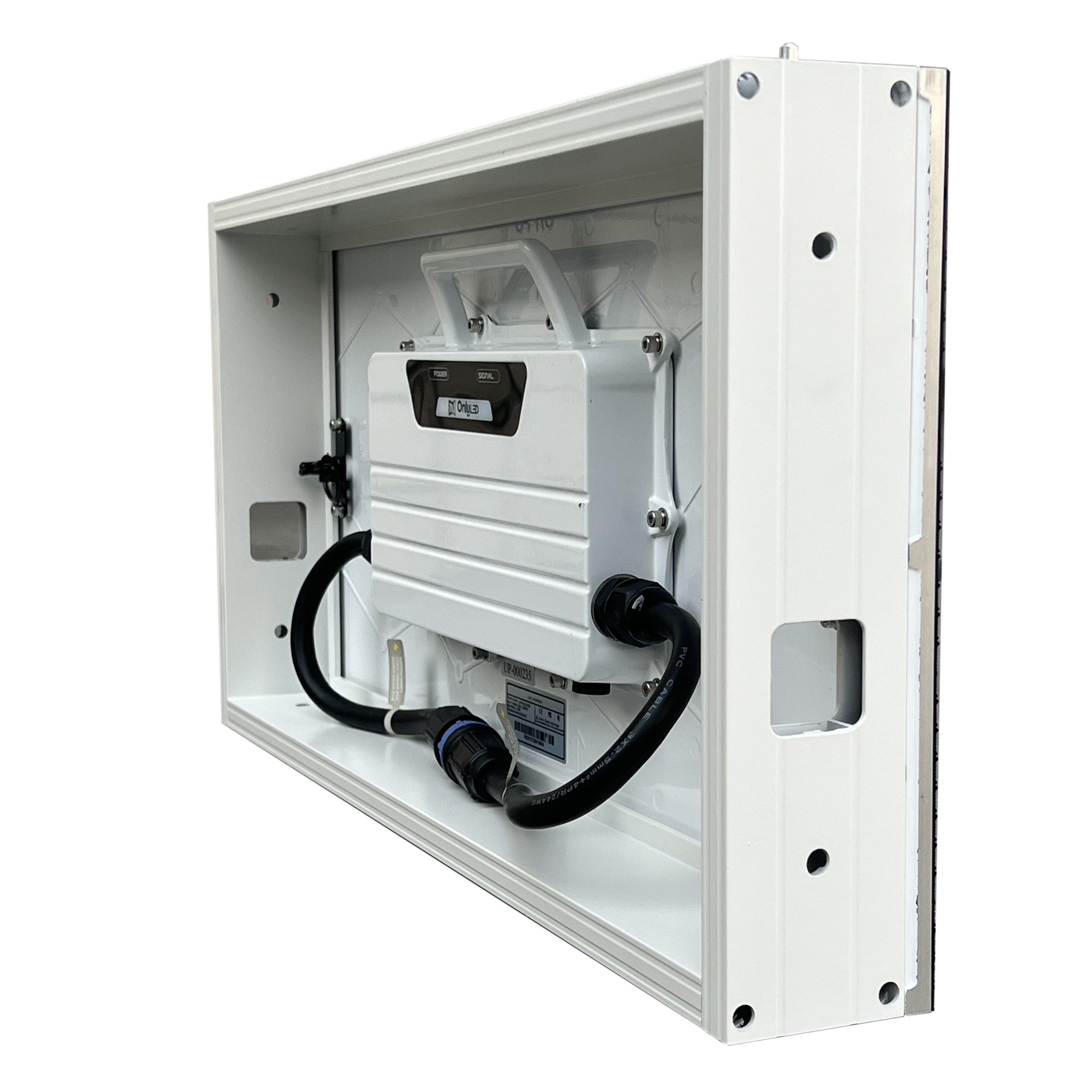

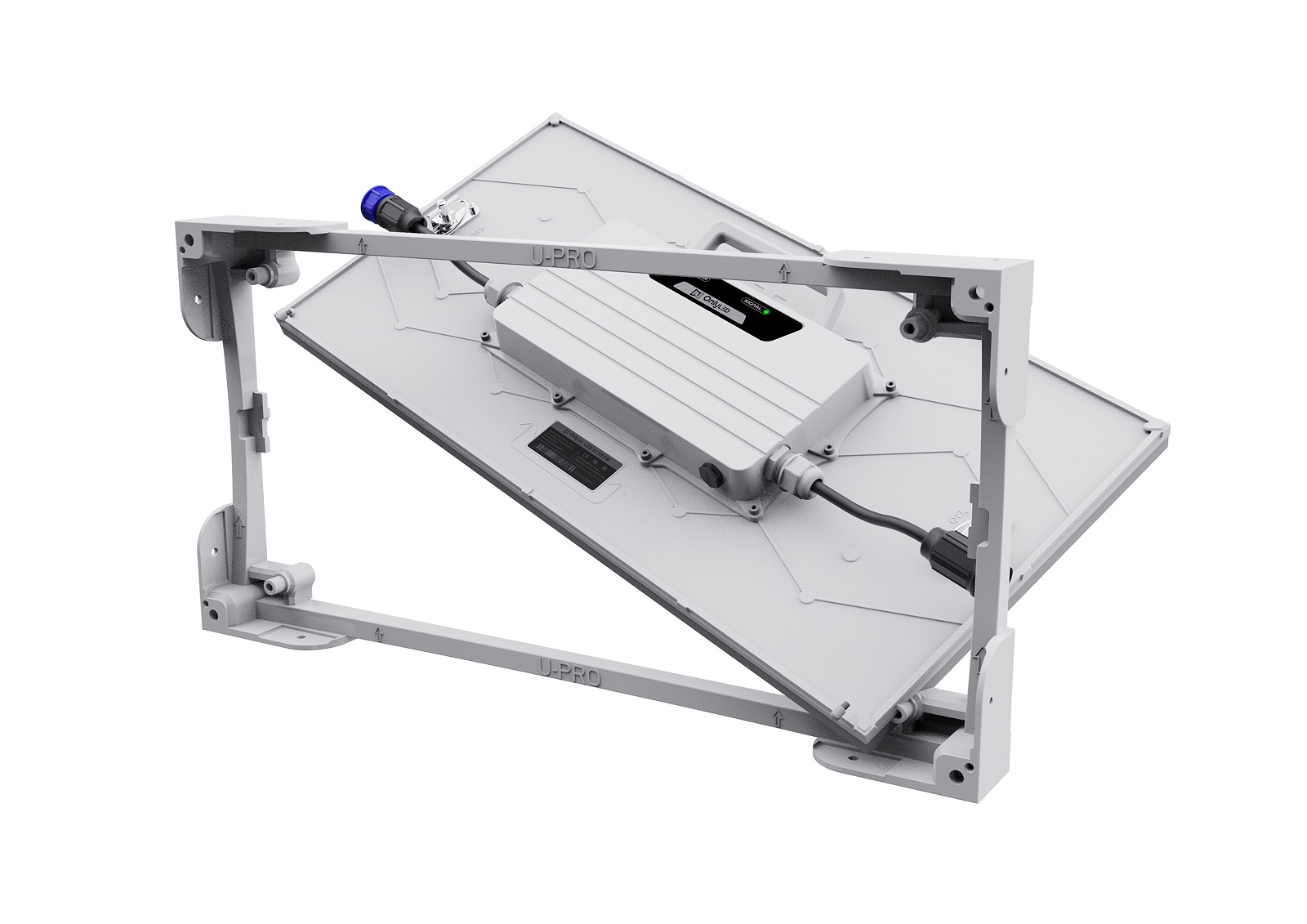

.We provide modular mounting frames for customers choices.Frame made of aluminium and cut by CNC machine, high accuracy ensures seamless splicing.Customer can assemble a led displays with minimal labor and time.

. One uniform size led panel has many pixel pitches for customers choice 3.8mm 6.3mm 7.6mm and 9.5mm.

. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.

. Common cathode LEDs, saving up to 30% electricity than conventional LED screens.

3.Product parameters
