High-definition outdoor digital signage pixel pitch 3.175mm
  • ONLY LED DISPLAY
  • CHINA
  • 2000
  • 2000

Outdoor high resolution LED screen by ONLY LED. The 3.175mm is the smallest pixel pitch of skyline series LED displays.Such high resolution outdoor displays are widely used for shop ,bus,tram,taxi-roof, outdoor TV, Outdoor sports broadcast etc.It is light-weight and slim, high brightness and high refresh rate.

Product details

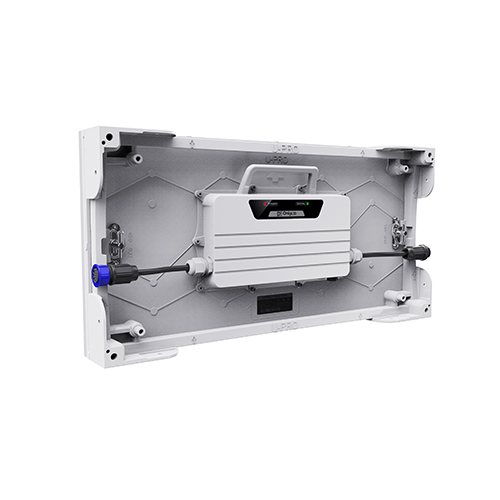

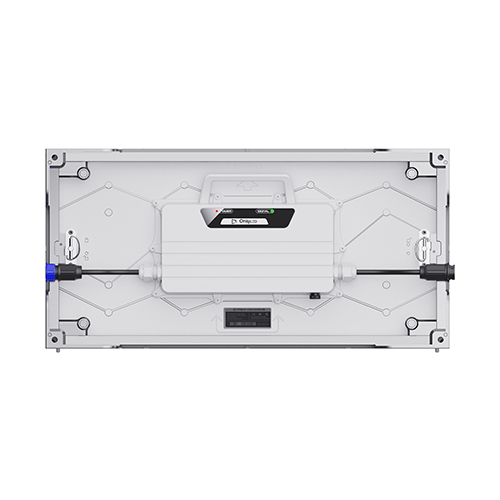

Outdoor high resolution LED screen by ONLY LED. The 3.175mm is the smallest pixel pitch of skyline series LED displays.Such high resolution outdoor displays are widely used for shop ,bus,tram,taxi-roof, outdoor TV, Outdoor sports broadcast etc.It is light-weight and slim, high brightness and high refresh rate.ONLYLED 3.175mm LED panel uses high-precision die-casting aluminium LED panel,with excellent alignment, it brings the best visual effect to people.It is an ideal products for outdoor digital signages,too.


1.Product introduction


. 3.1mm pixel pitch High resolution.

. LED panel size 304.8*609.6mm (12 x 24 inhces), weight 4.8kgs (12.5lbs) each panel.

. Patent design LED panel, including global patents.

. Suitable for DOOH digital signages.

. LED panel made of aluminium materials, good cooling effect, working temperature -40℃ to 60℃.

. Extruded aluminium mounting frame and die-casting mounting frames are available for customers choices.

. Support front access and back access installation of LED signs.

. LED panels can be installed in both vertical and horizontal orientations.

. ETL listed LED sign modules by intertek Laboratory. FCC approved.

. Good brightness 5,500cd/m2.

. Fanless design, all electronics fully sealed in the LED panel, entire product IP66 rating.


2.Product feature and application


. High definition LED panels widely used for outdoor commercial advertising screens,DOOH signages.

. Multi- mounting ways, wall-mount,roof-mount, pole-mount,led trailers and double sided mount.

. Fully sealed LED cabinet,without fans, Ingress protection 67.

. Power and data integrated into one cable and one connector increases functional stability.

. Minimal running gears,reduced cables and connector, all parts highly integrated. Ensure our product have high reliability.

. Every LED panel have built-in receiving card and memo, support chromatic and brightness calibrations.

. Support front and back maintenance,Support landscape and portrait installation

.Good heat dissipation, Driving IC stick to aluminium plate,Aluminium LED panel body has really good heat discharging.ensure the entire led panel have uniform temperature thus has uniform brightness,this perfectly solve the color-splotches.

.We provide modular mounting frames for customers choices.Frame made of aluminium and cut by CNC machine, high accuracy ensures seamless splicing.Customer can assemble a led displays with minimal labor and time.

. One uniform size led panel has many pixel pitches for customers choice 3.8mm 6.3mm 7.6mm and 9.5mm.

. Support remote control and monitoring. Push content from cloud server via WIFI internet or 4G.


3.Product parameters


MODEL NUMBERUP-PH3.17-CDS
Installation   EnvironmentOutdoor Permanent Installation
Ingress   protection ratingIP66
Pixel  pitch3.17mm
LED   Panel  Size1'*2' (12"x24")
LED   panel materialDie-casting Aluminum
LED   DiodeSMD1415 3in1
Density   of pixel /sqm99,225pixel/
Resolution/panel (H*W)96pixel*192 pixels
Average power/ LED panel watts39W
Max power/ LED panel watts125W
Scan rate1/16  Scan
Brightness≥5,500cds/
Panel   weight (kgs)6.5kgs (14.3lbs)
Maintenance   AccessFront and rear maintenance ways
Refresh rate≥3000HZ
viewing angle/horizontal110°
Viewing angle/Vertical90°
Grey scale/display color65536/display 16.7M
frame frequency≥60HZ
Brightness adjustmentManual R.G.B each color   256,automatic 8 grades are adjustable
Input signalRFS-VideoRGBRGBHVYUVYCCOMPOSITONS
Control systemColorlight and Novastar
System   Operation PlatformWindows
Malfunction do rate0.0001
Power   supplies4.2V40A
AC Input VoltageV   FrequencyHz90~240 VAC  50/60 hz
Earth leakage current0.01mA
working   / Storage temperatureworking -30℃~60    storage -40℃~85
Operating Humidity and Storage HumidityRH10~95
CertificationsETL ,CE ,EMC-A, FCC
WarrantyFIVE years
